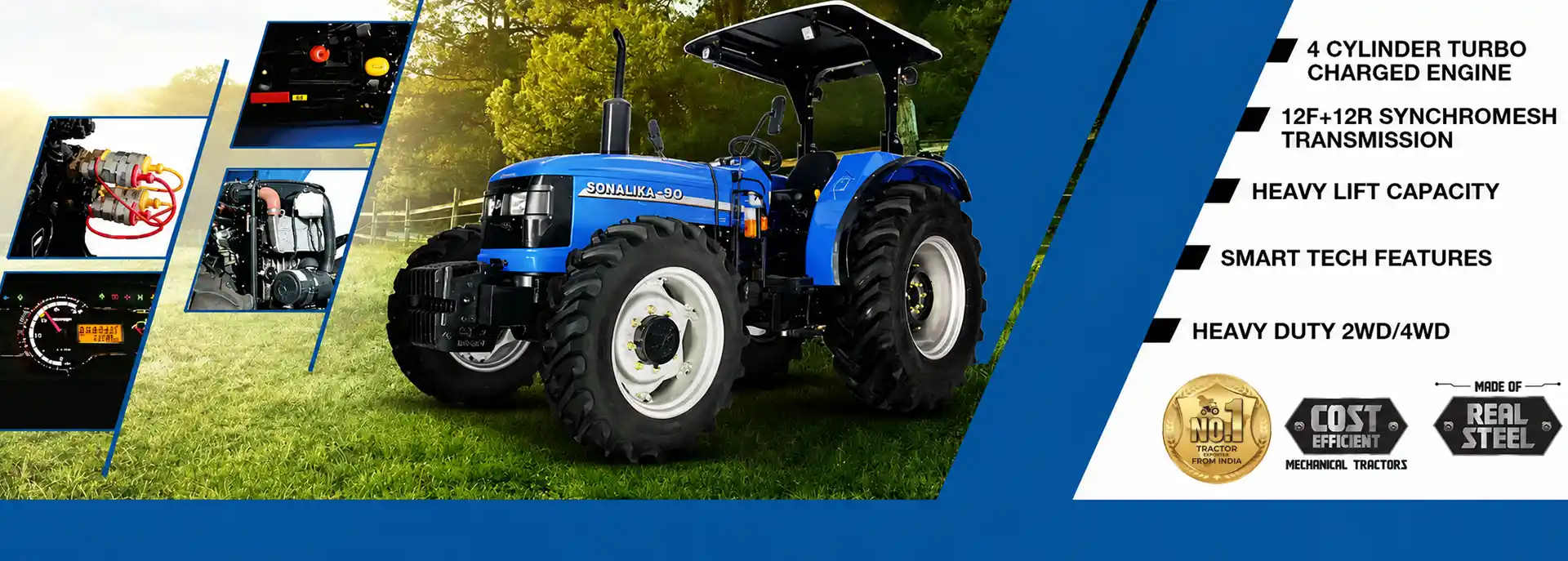

Features
Engine
4 Cylinder Turbo Charged Engine
Lifting Capacity
Heavy Duty 3000 Kg Lifting Capacity
Smart Tech Fetures
Advanced technology for efficient farming operations.
Variants
Heavy Duty 2WD/4WD
12F+12R Synchromesh Transmission
Jerk Free & Noise free Gear Shifting
Technical Specifications
Technical Specifications
Engine
| Engine Type | 4 Cylinder Turbo Charged Engine |
|---|---|
| HP Category | 90 |
| No. of Cylinders | 4 |
| Aspiration | Turbo Charged |
| Cubic Capacity (cc) | 4087 |
| Rated RPM (+/-mm) | 2200 |
| Air cleaner | Dry Type with Clogging Sensor |
| Cold Start | Yes (Optional) |
| Max Torque (nm) (+/- 5%) | 339 @ (1400±100)ERPM |
| Exhaust | Underhood Downdraft Silencer Underhood Upward |
Transmission
| Drive | 4WD |
|---|---|
| Clutch | Dual Clutch |
| Gearbox | 12F+12R |
| Transmission | Synchronmesh |
Speed (Forward)
| Maximum Speed (Km/Hr) | 32.31 @ 2200 |
|---|---|
| Minimum Speed (Km/Hr) | 1.57 @ 2200 |
Brakes
| Brakes | Oil Immersed Brakes |
|---|---|
| Type of actuation | Mechanical |
| Parking Brake | Independent Type |
Differential Lock
| Differential Lock | Mechanical, Foot Operated |
|---|
PTO
| PTO (RPM) | 540/540E |
|---|---|
| PTO (Actuation) | Mechanical |
Steering
| Steering | Power |
|---|
Electrical
| Battery | 12V,110AH |
|---|---|
| Alternator | 12V, 36 Amps |
| Seven Pin Trailer Socket | Standard |
Hydraulics
| 3 Point Linkage | CAT – II |
|---|---|
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity (Kg) | 2500 ( 3000 Optional) |
| Auxiliary Hydraulic Circuit | 2DA/2SA |
| Lift Rods | Standard |
Safety Switch
| Clutch Safety Switch | Standard |
|---|---|
| PTO Safety Switch | Standard |
| Neutral Safety Switch | Standard |
Capacity (Ltrs) (+/- 5%)
| Fuel Tank (Lit) | 78 |
|---|
Turning Radius
| Without Brakes (m) | LHS-6.13, RHS-6.18 |
|---|
Tyre
| Front | 12.4X24 |
|---|---|
| Rear | 18.4X30 |
Dimention & Weight (+/- 5%)
| Weight (Kg) | 3255 |
|---|---|
| Wheel Base (mm) | 2350 |
| Total Length (mm) | 3980 |
| Total Width (mm) | 2400 |
| Height (mm) Up to ROPS | 2640 |
| Min Ground Clearance (mm) | 405 |
| Front Track (mm) (Standard) | 1495-1835 |
| Rear Track (mm) (Standard) | 1500-1900 |
Others
| Fuel Indicator Gauge | Standard |
|---|---|
| Front Tow Hook | Standard, Inbuilt in Front Weight |
| Front & Rear Weights with Std. Ballast |
Front – 10X31 Kg Rear – 1X31 Kg on each Wheel |
| Trailer Hitch | Swinging Drawbar |
| ROPS | Standard |

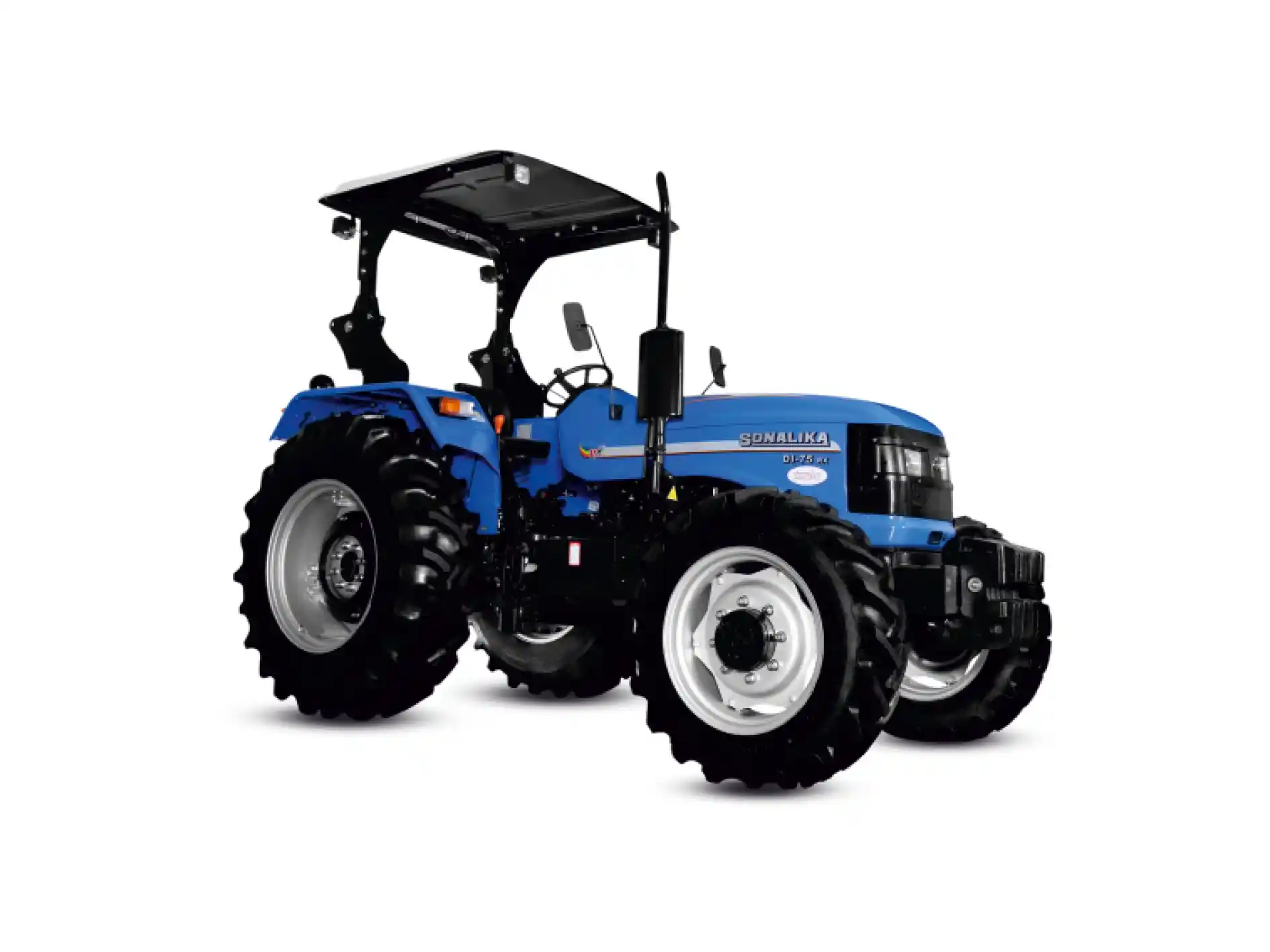

Sonalika DI 75 Rx

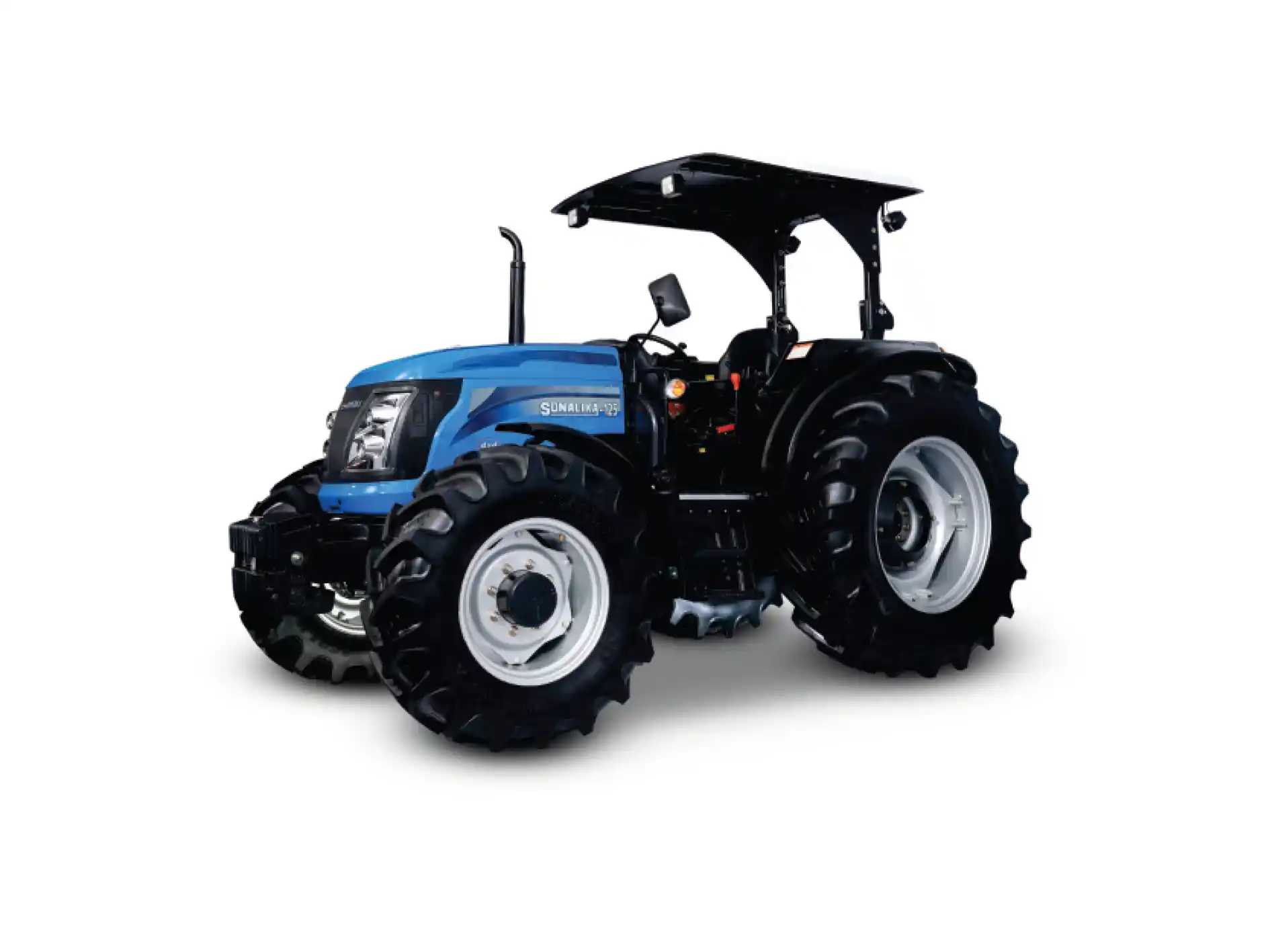

Sonalika 125 HP

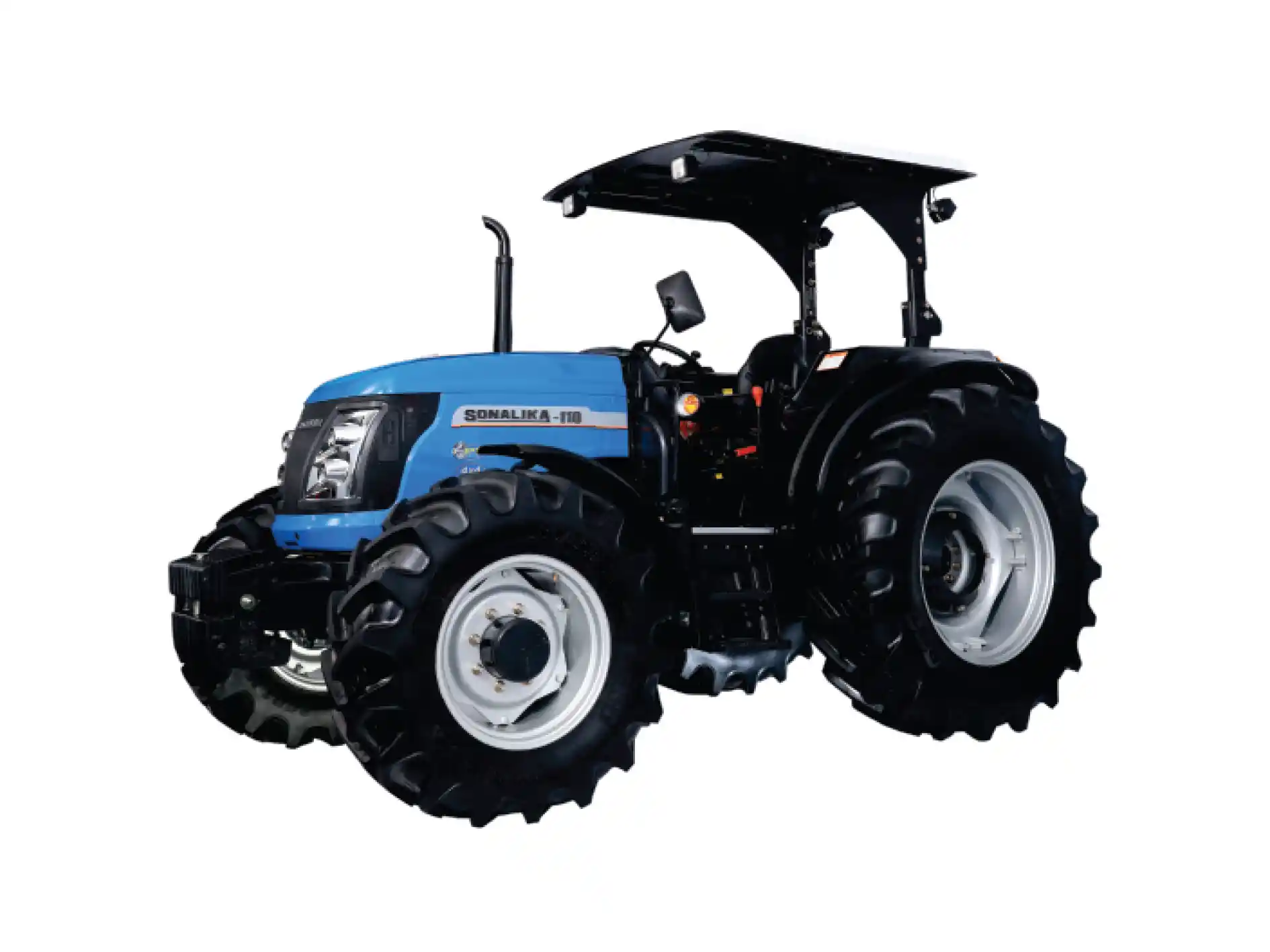

Sonalika 110 HP

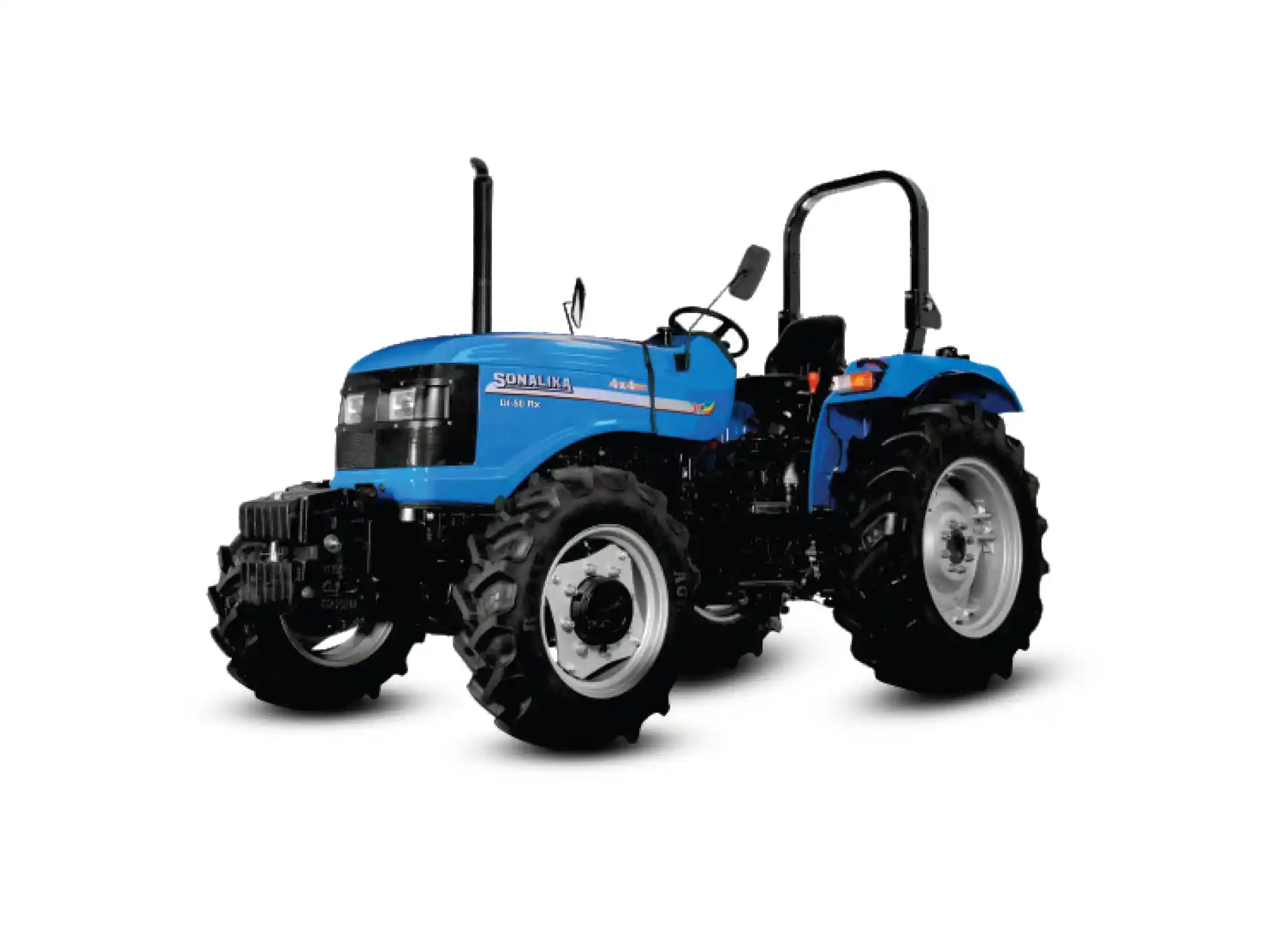

Sonalika DI 50 Rx
