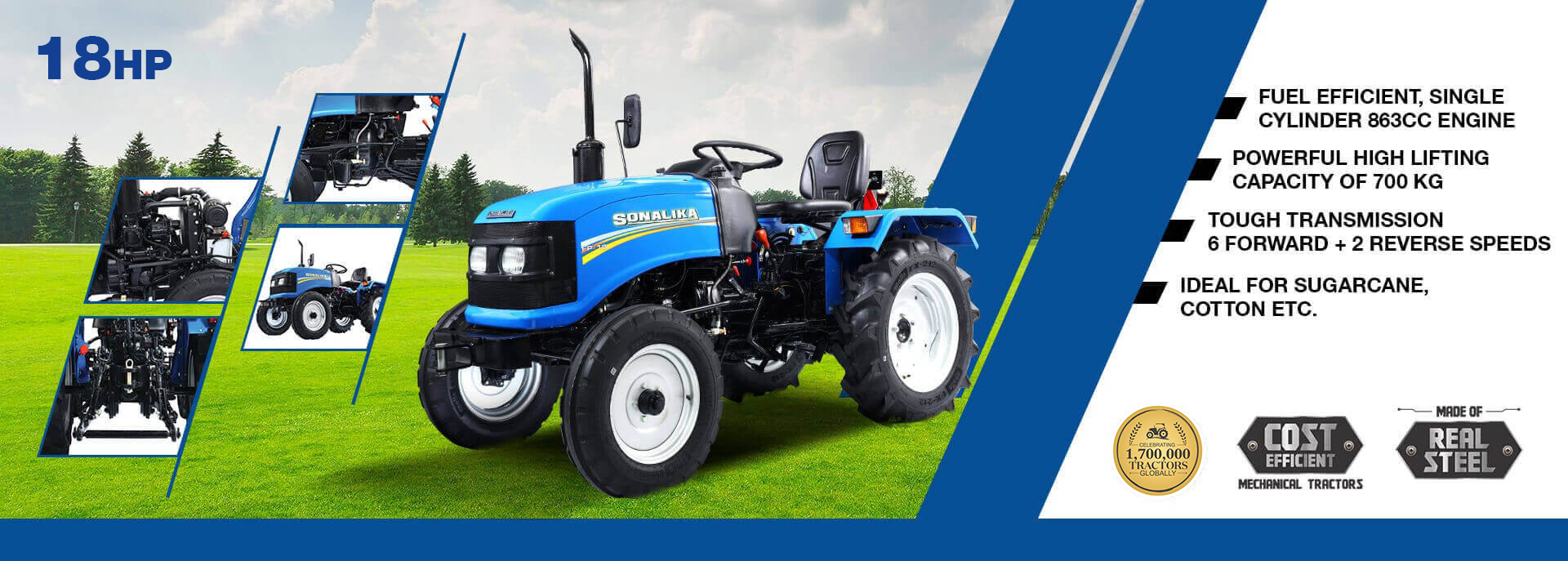

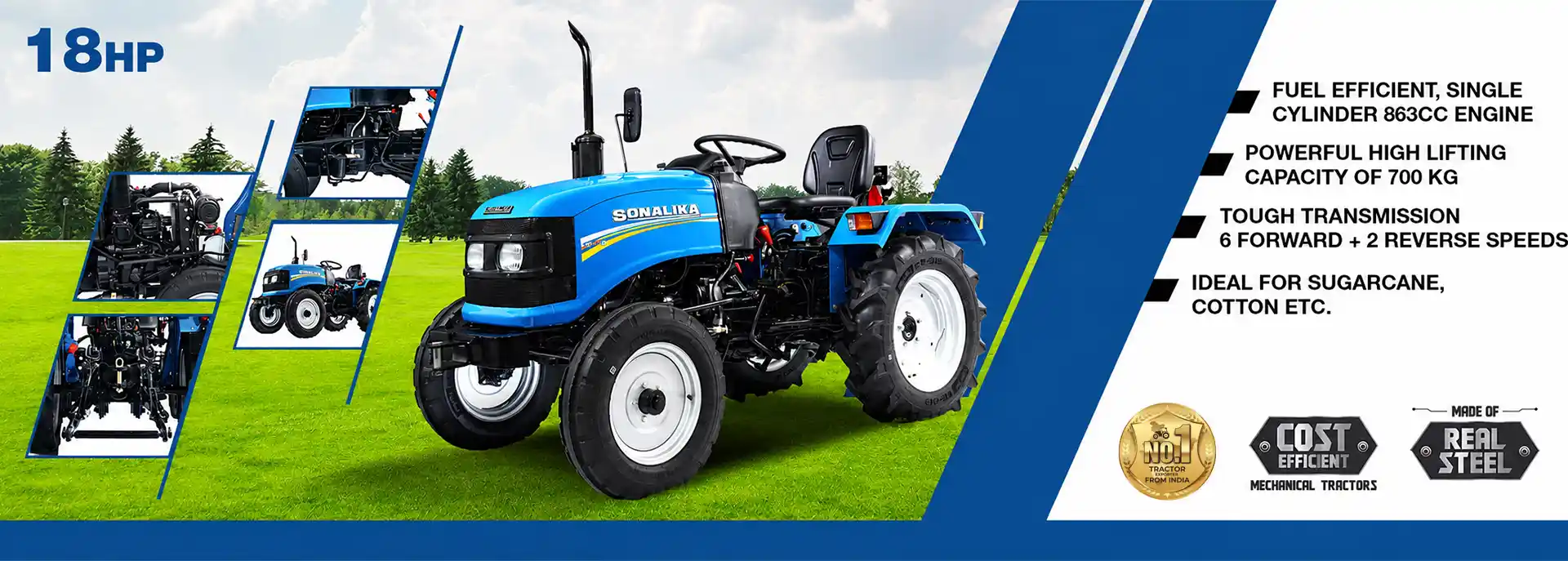

Features
Engine
Fuel Efficient, Single
Cylinder 863cc Engine
Cylinder 863cc Engine
Hydraulics
Powerful High Lift Capacity
of 700 Kg
of 700 Kg
Transmission
Tough Transmission
6 Forward + 2 Reverse Speeds
6 Forward + 2 Reverse Speeds
Compact Design
Ideal for Sugarcane,
Cotton etc.
Cotton etc.
Technical Specifications
Engine
| HP Category | 18 |
| No. of Cylinder | 1 |
| Aspiration | Natural |
| Cubic Capacity | 863.5 cc |
| Rated RPM | 2300 ± 75 |
| Air Cleaner | Dry type |
| Max Torque (Nm) | 54@1200±200 RPM |
| Exhaust | Updraft Silencer |
Transmission
| Drive | 2WD |
| Gearbox | Sliding Mesh |
| Transmission | 6F + 2R |
Speed (Forward)
| Minimum Speed (Km/hr) | 2.01 |
| Maximum Speed (Km/hr) | 25.19 |
Brakes
| Brakes | Oil Immersed |
| Type of Actuation | Mechanical |
| Parking Brake | Independent Parking Brakes |
PTO
| PTO (rpm) | 540 & 540E |
| PTO (Actuation) | Mechanical |
Steering
| Steering | Mechanical |
ELECTRICALS
| Battery | 12V, 65 Ah |
| Alternator | 12V, 36 H |
Hydraulics
| 3 Point Linkage | CAT 1 |
| Stay Bars | Anchor Chain |
| Auxiliary Hydraulic Circuit | 1TA |
| Lift Capacity | 700 kg |
| Lift Rods | Yes |
Capacity (Ltrs) (+/- 5%)
| Fuel Tank | 28 L |
Tyre
| Front | 5.25 X 14 |
| Rear | 8 X 18 |
OVERALL DIMENSIONS
| Weight (Kg) | 1160 |
| Wheel Base (mm) | 1485 |
| Total Length (mm) | 2745 |
| Total Width (mm) | 1165 |
| Height (mm) Up to Muffler | 1780 |
| Min. Ground Clearance | 220 |
| Front Track (mm) | 970 |
| Rear Track (mm) | 935 |
Others
| Front Toe Hook | Yes, Available |
