Features
Engine

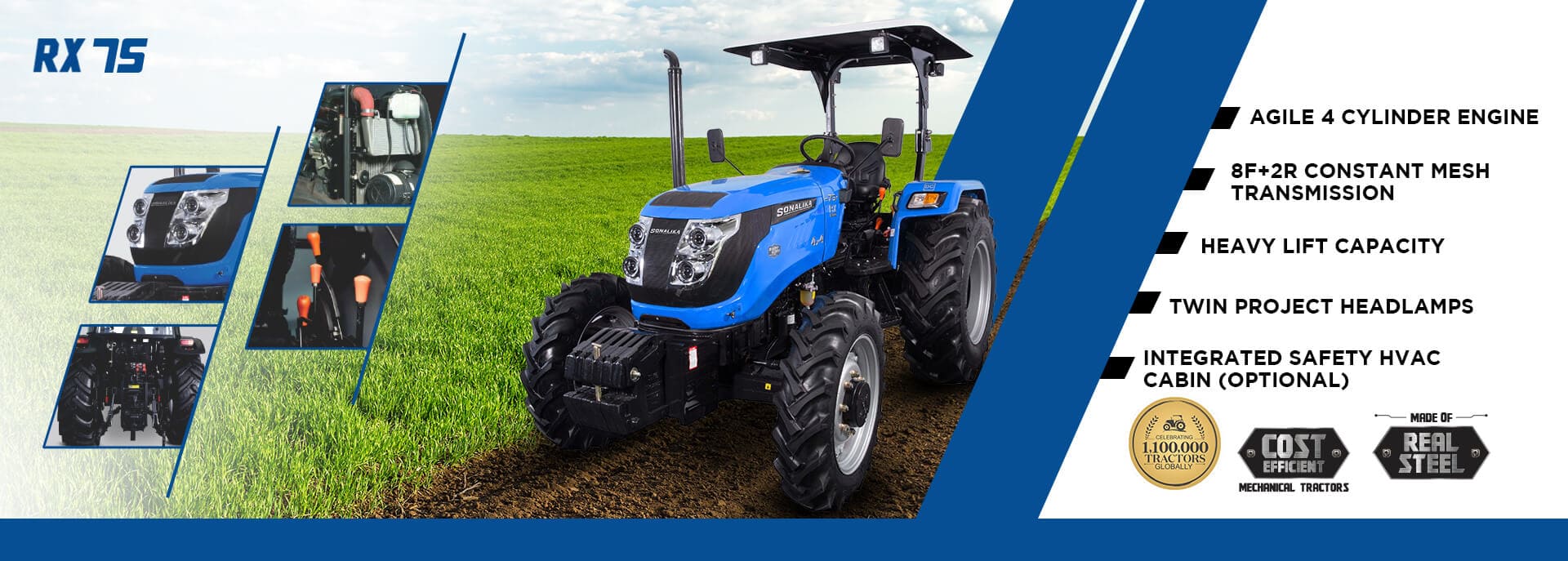

Agile 4 Cylinder Engine
Constant Mesh 8F+2R Transmission
Jerk Free & Noise free Gear Shifting
Lifting Capacity
Heavy Duty Lifting Capacity
Swift and easy loader operations
Parallelogram Loader Option
For comfortable operations under tough weather conditions
Integrated Safety HVAC Cabin (Optional)
Technical Specifications
Engine
| Engine Type | 4100FLT |
|---|---|
| HP Category | 75 |
| No. of Cylinders | 4 |
| Aspiration | Turbo Charged |
| Cubic Capacity (cc) | 3707 |
| Rated RPM (+/-mm) | 2200 |
| Air cleaner | Dry Type with Clogging Sensor |
| Cold Start | Standard |
| Max Torque (nm) (+/- 5%) | 278 @ 1300ERPM |
| Exhaust | Elliptical Upward |
Transmission
| Drive | 4WD |
|---|---|
| Clutch | Dual Clutch |
| Gearbox | 8F+2R |
| Transmission | Swift Shift |
Speed (Forward)
| Maximum Speed (Km/Hr) | 36.46 @ 2200 |
|---|---|
| Minimum Speed (Km/Hr) | 1.95 @ 2200 |
Brakes
| Brakes | Oil Immersed Brakes |
|---|---|
| Type of actuation | Mechanical |
| Parking Brake | Independent |
Differential Lock
| Differential Lock | Standard, Foot Operated |
|---|
PTO
| PTO (RPM) | 540 |
|---|---|
| PTO (Actuation) | Mechanical |
Steering
| Steering | Power |
|---|
Electrical
| Battery | 12V, 110/88 Ah |
|---|---|
| Alternator | 12V, 36Amps |
| Seven Pin Trailer Socket | Standard |
Hydraulics
| 3 Point Linkage | CAT-II |
|---|---|
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity | 2500Kg |
| Auxiliary Hydraulic Circuit | 1DA+1SA |
| Lift Rods | Standard |
Safety Switch
| Neutral Safety Switch | Standard |
|---|---|
| Clutch Safety Switch | Standard |
| Neutral Safety Switch | Standard |
Capacity (Ltrs) (+/- 5%)
| Fuel Tank (Lit) | 65 |
|---|
Tyre
| Front | 11.2-24 |
|---|---|
| Rear | 16.9-30 |
Dimention & Weight (+/- 5%)
| Unballast Weight | 2742 |
|---|---|
| Wheel Base (mm) | 2307 |
| Total Length (mm) | 3997 |
| Total Width (mm) | 1942 |
| Height (mm) Up to ROPS | 2620 |
| Min Ground Clearance (mm) | 293 |
| Front Track (mm) (Standard) | 1672 |
| Rear Track (mm) (Standard) | 1515 |
Others
| Fuel Indicator Gauge | Standard |
|---|---|
| Front Tow Hook | Standard, Inbuilt in Front Weight |
| Front & Rear Weights with Std. Ballast | Front- 2X30Kg, 4X25, Rear- 1X34 Kg |
| Trailer Hitch | Swinging Drawbar |
| ROPS | Standard |
Optional Features
| Canopy | Optional |
|---|---|
| 2WD Variant | Standard |
| Tyre 2WD | Front: 7.5X16 |
