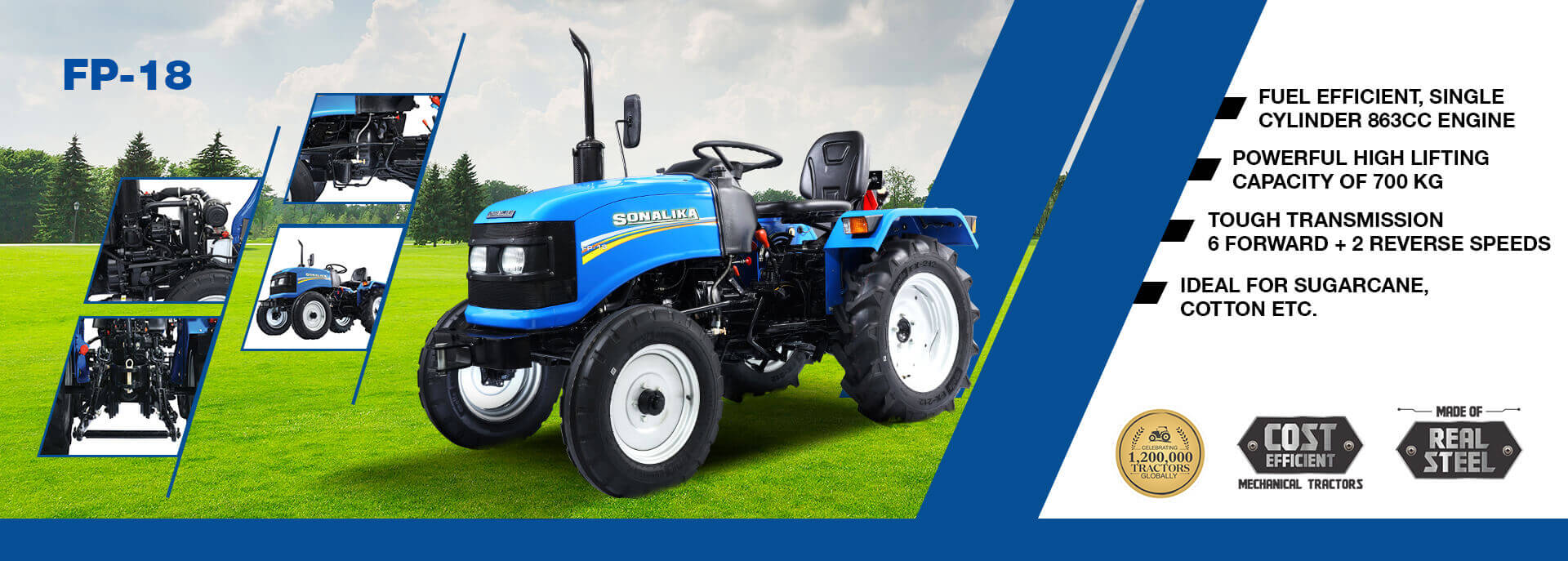

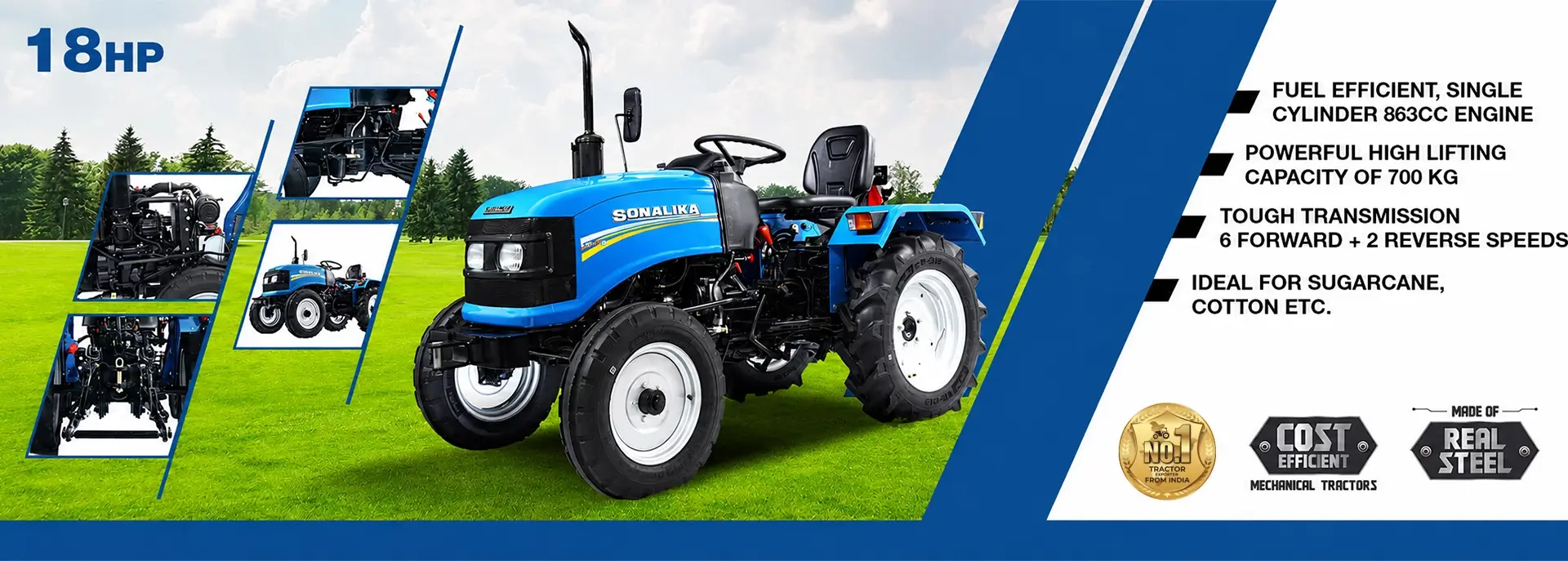

Features

Lifting Capacity

Engine

Fuel Efficient, Single
Cylinder 863cc Engine
Lifting Capacity

Hydraulics

Powerful High Lift Capacity
of 700 Kg
6f+2rtransmission

Transmission

Tough Transmission
6 Forward + 2 Reverse Speeds

Compact Design

Ideal for Sugarcane,
Cotton etc.

Technical Specifications

Engine

HP Category 18
No. of Cylinder 1
Aspiration Natural
Cubic Capacity 863.5 cc
Rated RPM 2300 ± 75
Air Cleaner Dry type
Max Torque (Nm) 54@1200±200 RPM
Exhaust Updraft Silencer

Transmission

Drive 2WD
Gearbox Sliding Mesh
Transmission 6F + 2R

Speed (Forward)

Minimum Speed (Km/hr) 2.01
Maximum Speed (Km/hr) 25.19

Brakes

Brakes Oil Immersed
Type of Actuation Mechanical
Parking Brake Independent Parking Brakes

PTO

PTO (rpm) 540 & 540E
PTO (Actuation) Mechanical

Steering

Steering Mechanical

ELECTRICALS

Battery 12V, 65 Ah
Alternator 12V, 36 H

Hydraulics

3 Point Linkage CAT 1
Stay Bars Anchor Chain
Auxiliary Hydraulic Circuit 1TA
Lift Capacity 700 kg
Lift Rods Yes

Capacity (Ltrs) (+/- 5%)

Fuel Tank 28 L

Tyre

Front 5.25 X 14
Rear 8 X 18

OVERALL DIMENSIONS

Weight (Kg) 1160
Wheel Base (mm) 1485
Total Length (mm) 2745
Total Width (mm) 1165
Height (mm) Up to Muffler 1780
Min. Ground Clearance 220
Front Track (mm) 970
Rear Track (mm) 935

Others

Front Toe Hook Yes, Available

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Rotary Slasher
