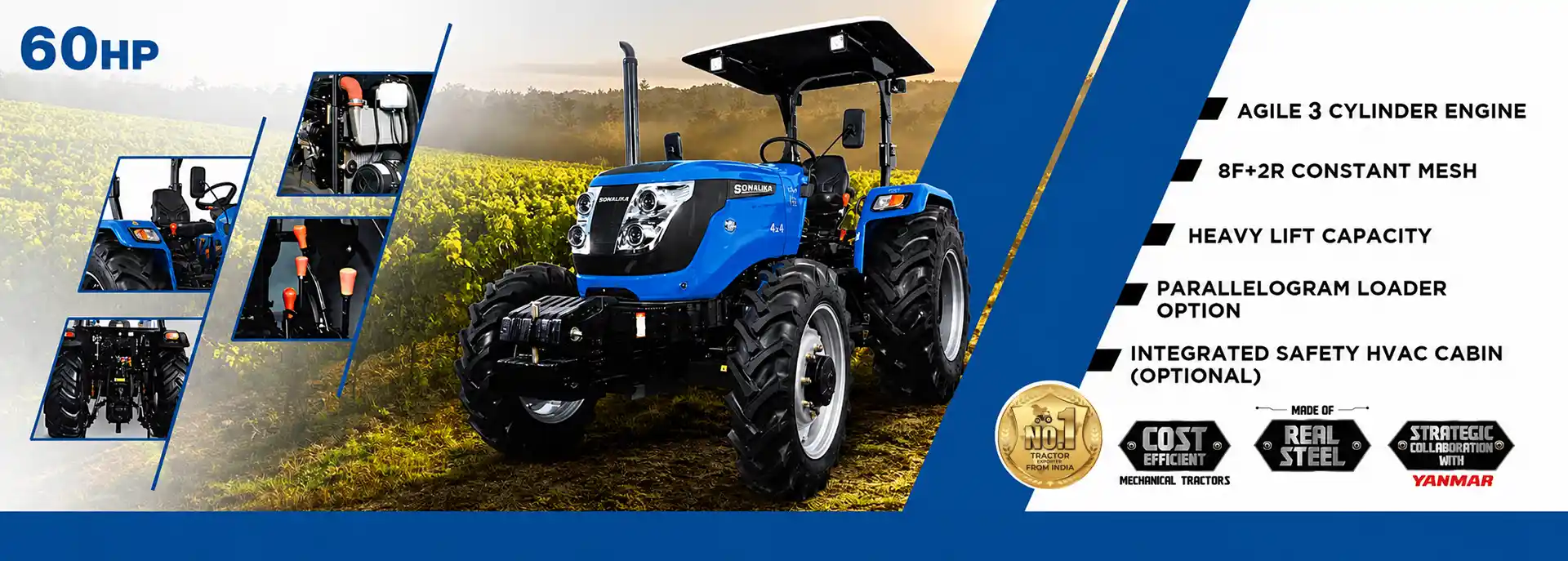

Sonalika Zambia 60

Features

Engine

In house Powerful 3 Cylinder Engine

Swift Shift 8F+2R Transmission

Jerk Free & Noise free Gear Shifting

Lifting Capacity

Heavy Duty Lifting Capacity

Swift and easy loader operations

Parallelogram Loader Option

For comfortable operations under tough weather conditions

Integrated Safety HVAC Cabin (Optional)

Technical Specifications

Engine

Engine Type 3100 FLT
HP Category 60
No. of Cylinders 3
Aspiration Turbo
Cubic Capacity (cc) 2780
Rated RPM 2100
Air cleaner Dry Type
Cold Start Standard
Max Torque (nm) 230Nm @ 1300ERPM
Exhaust Underhood / Upward

Transmission

Drive 4WD
Clutch Dual Clutch
Gearbox 8F+2R
Front Axle 4WD
Transmission Swift Shift

Speed (Forward)

Maximum Speed (Km/Hr) 33.67
Minimum Speed (Km/Hr) 2.52

Brakes

Brakes Oil Immersed Brakes
Type of actuation Mechanical
Parking Brake Independent

Differential Lock

Differential Lock Standard

PTO

PTO (RPM) 540

Steering

Steering Power

Electrical

Battery 12V, 88 Ah
Alternator 12V, 36Amp
Seven Pin Trailer Socket Standard

Hydraulics

3 Point Linkage CAT-II
Stay Bars Swinging Drawbar
Hydraulic Lifting Capacity 2000 kg
Auxiliary Hydraulic Circuit 2DA
Lift Rods Standard

Safety Switch

Clutch Safety Switch Standard
PTO Safety Switch Standard
Neutral Safety Switch Standard

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Lit) 62

Tyre

Front 9.5-24
Rear 16.9*28

Dimention & Weight (+/- 5%)

Weight (Kg) 2500
Wheel Base (mm) 2350
Total Length (mm) 3980
Total Width (mm) 1790-1950
Height (mm) Up to ROPS 2650
Min Ground Clearance (mm) 360
Front Track (mm) 1295-1650
Rear Track (mm) 1420-1880

Others

Fuel Indicator Gauge Standard
Front Tow Hook Inbuilt in Front Weight
Front & Rear Weights with Std. Ballast Base Weight 72 Kg + Front Weight 6X31 Kg
Trailer Hitch Swinging Drawbar
ROPS Standard

Optional Features

Tyre 9.5/20 & 16.9*28

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Trailer

Planter

Rotary Slasher
