Features
Engine

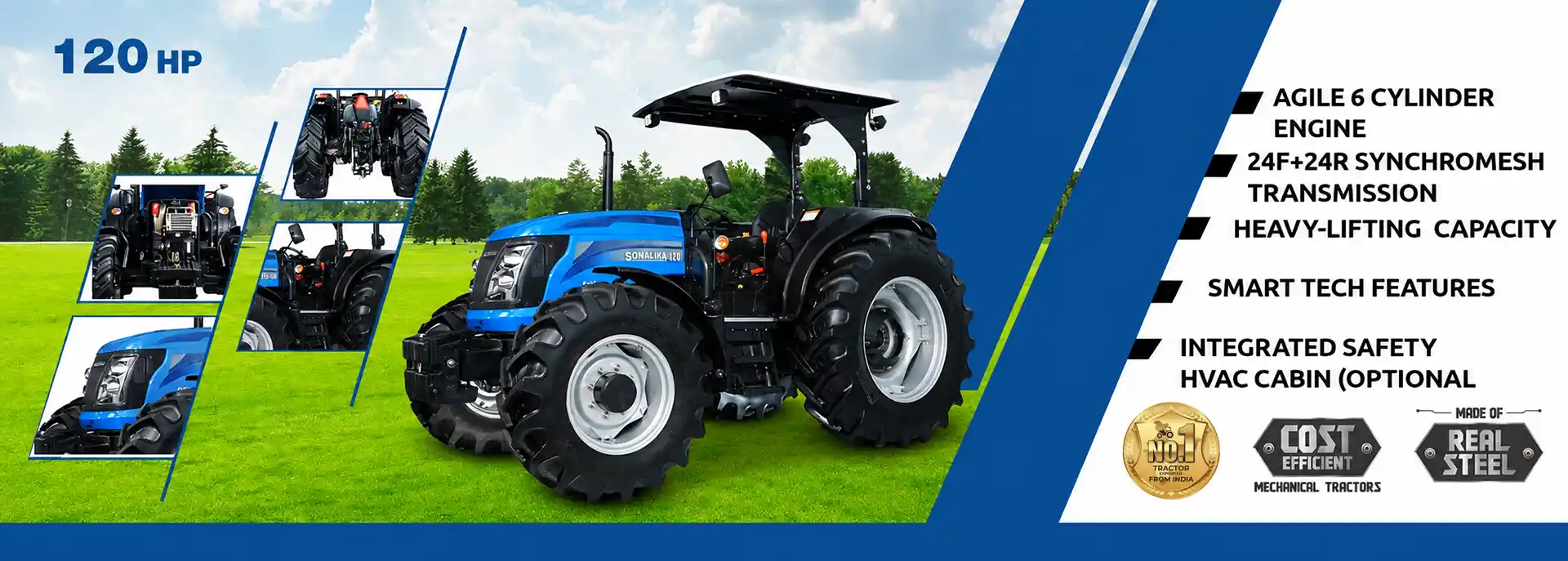

AGILE 6 CYLINDER
ENGINE
ENGINE
Hydraulics
HEAVY-LIFTING CAPACITY
Transmission
24F+24R SYNCHROMESH
TRANSMISSION
TRANSMISSION
HVAC CABIN
INTEGRATED SAFETY
HVAC CABIN (OPTIONAL)
Technical Specifications
Engine
| HP Category | 120 |
| No. of Cylinder | 6 |
| Displacement cc | 6.127 L |
| Aspiration | Turbocharged with Intercooler |
| Bore/Stroke (mm) | 105 x 118 |
| Rated RPM | 2200 |
| Air Cleaner | Three stage dry type |
| Max Torque | 475 |
Transmission
| Drive | 4WD |
| Clutch | Double Clutch |
| Gearbox | 24F+24R |
| Transmission | Synchromesh Gear Box |
| 4WD Engagement | Electrical Switch Operated |
Speed (Forward)
| Minimum Speed (Km/hr) | 0.67 Kmph |
| Maximum Speed (Km/hr) | 40 Kmph |
| Driver Seat | Mechanical Suspension |
Brakes
| Brakes | Wet Disk Brakes |
| Type of Actuation | Hydraulic Actuated |
| Hand Brake | Mechanical, Hand operated |
| Trailer Brakes | HTB (Standard) |
DIFFERENTIAL LOCK
| Differential Lock | Electrical Switch Operated |
PTO
| PTO (RPM) | 540/540E 540/1000(optional) |
| PTO (Actuation) | Mechanical Operated Lever |
Steering
| Steering | Power |
ELECTRICALS
| Battery | 12V, 110Ah |
| Alternator | 12V, 90A |
| Seven Pin Trailer Socket | Yes |
Hydraulics
| Position & Draft Control | Electronic Lift (EHR) |
| 3 Point Linkage | CAT-II |
| Lifting Capacity | 4500 Kg |
| Auxiliary Hydraulic Circuit | 3DA , 2 SA convertible with 1 Detent |
SAFETY SWITCH
| Neutral Safety Switch | Standard |
| PTO Safety Switch | Standard |
| Clutch Safety Switch | Standard |
Capacity (Ltrs) (+/- 5%)
| Fuel Tank (Ltr.) | 150 L |
TURNING RADIUS IN (m)
| Without Brakes & With Brakes | 6.2 (w/o brakes) |
Tyre
| Front | 380/85R24 |
| Rear | 460/85R34 |
OVERALL DIMENSIONS
| Weight (Kg) | 4665 |
| Overall Length (mm) | 4660 |
| Overall Width (mm) | 2260 |
| Overall Height (mm) | 2660 |
| Wheel Base (mm) | 2645 |
| Min. Ground Clearance (mm) | 488 |
| Front Wheel Track Agri (mm) | 1760 |
| Rear Wheel Track Agri (mm) | 1724 |
Others
| Fuel Indicator Gauge | Standard |
| Registration Plate with Light | Standard |
| Front Toe Hook | Standard |
| Front & Rear Weights | Front-31Kg*8+72Kg Base weight Rear-40*2Kg |
| Drawbar | Yes, Ladder Hitch |
| ROPS | Standard |
| Canopy | Standard |
| Cabin | Optional |
OPTIONAL FEATURES
| Front Mudguard
|
Standard |
| Weight optional | Front- 31Kg*10 |
