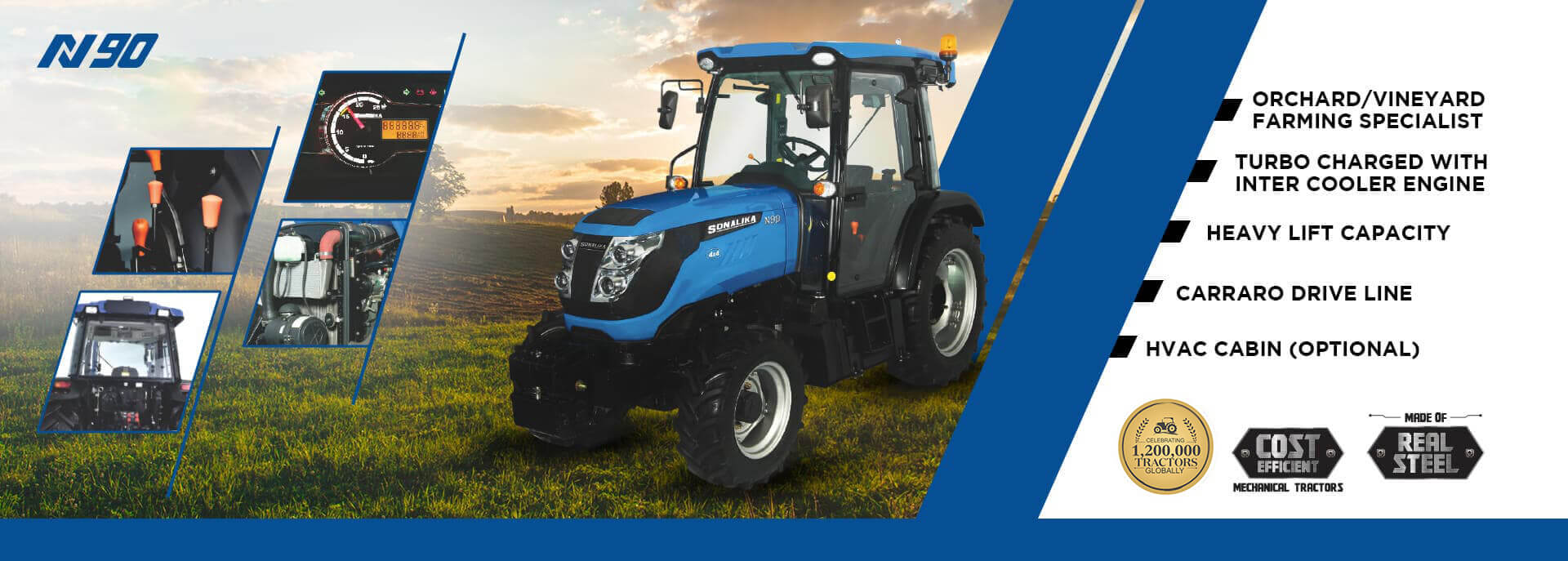

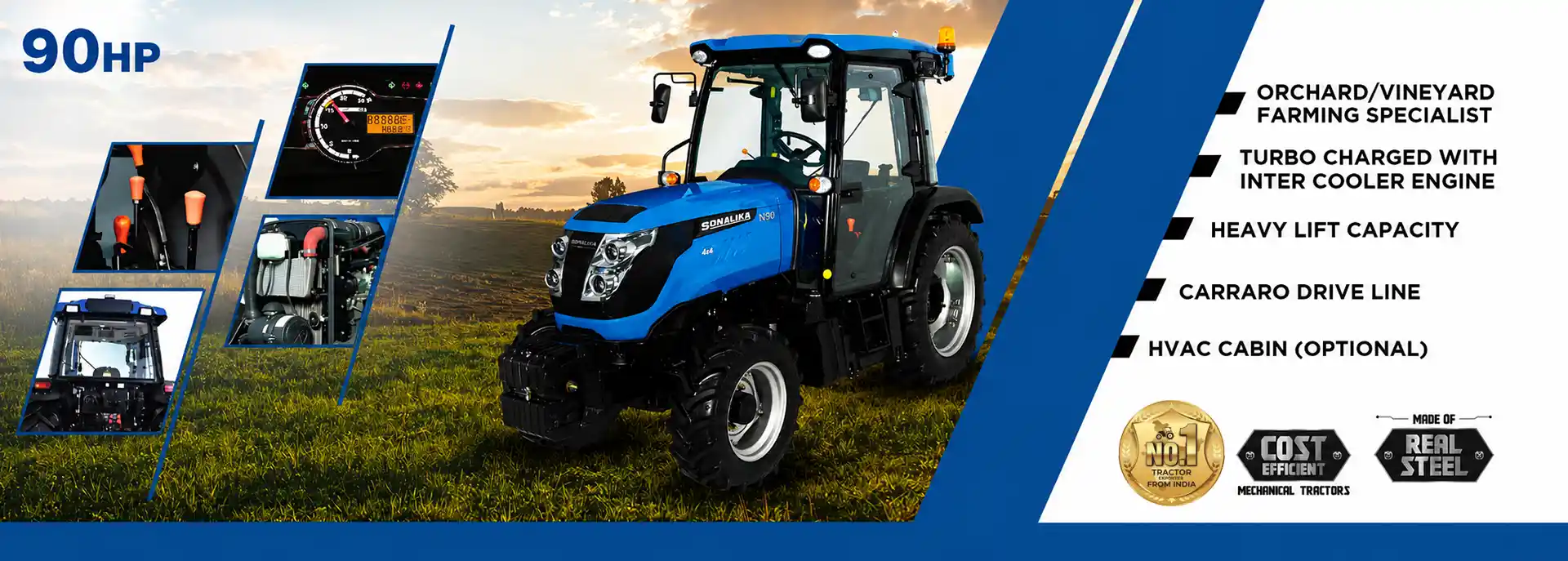

Features

Engine

Turbo Charged with inter cooler engine

Specialist

Orchard / Vineyard Farming Specialist

Lifting Capacity

Heavy Duty Lifting Capacity

Renound gear box for better durability and comfort

Carraro Drive Line

For comfortable operations under tough weather conditions

HVAC / Heater Cabin (Optional)

Technical Specifications

Engine

Engine Type 4 Cylinder Turbo Charged Engine
Emmission Stage 3A / Stage 2
HP Category 90
No. of Cylinders 4
Aspiration Turbo Charged
Cubic Capacity (cc) 4087
Rated RPM 2000/2200
Air Cleaner Dry Air Cleaner with Clogging Sensor
Max Torque (nm) 360@1300
Exhaust Underhood Downdraft Towards the Floor

Transmission

Clutch Double Clutch
Gearbox 12F+12R
Front Axle 4WD
Transmission Synchromesh Shuttle Transmission with Creeper

Speed (Forward)

Maximum Speed (Km/Hr) 31.07@2000
Minimum Speed (Km/Hr) 0.5@2000

Brakes

Brakes Oil Immeresed Brake
Type of Actuation Mechanical
Parking Brake Independent Type

Differential Lock

Differential Lock Yes, Foot Operated

PTO

PTO (RPM) 540/540E
PTO (Actuation) Mechanical

Steering

Steering Power

Electrical

Battery 12V, 85Ah
Alternator 12V, 90Amp
Seven Pin Trailer Socket Standard

Hydraulics

3 Point Linkage CAT-II
Stay Bars Standard
Hydraulic Lifting Capacity 2500Kg
Auxiliary Hydraulic Circuit 2DA/2SA

Safety Switch

Clutch Safety Switch Standard
PTO Safety Switch Standard
Neutral Safety Switch Standard

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Ltr) 73

Turning Radius

Without Brakes (m) 4.58

Tyre

Front 8-18
Rear 14.9-24

Dimention & Weight (+/- 5%)

Overall Length (mm) 4240
Overall Width (mm) 1545
Overall Height (mm) 2700
Wheel Base (mm) 2325/2305
Min. Ground Clearance (mm) 340
Front Wheel Track Agri (mm) 1150(4WD) /1171(2WD)
Rear Wheel Track Agri (mm) 1082

Others

Fuel Indicator Gauge Standard
Front Tow Hook Standard, Inbuilt in Front Weight
Front & Rear Weights with std. Ballast
Front-72 kg + 6×31 kg
Front Removal Weight. /
Rear 1*30 kg At each wheel
Trailer Hitch Swinging Drawbar
ROPS Optional

Optional Features

Tyres 4WD / 2WD
1) Front Tyre: 260/70R16 | Rear Tyre: 360/70R24
2) Front Tyre: 280/70R18 | Rear Tyre: 360/70R28
3) Front Tyre: 280/70R18 | Rear Tyre: 420/70R24
4) Front Tyre: 6.5×16 | Rear Tyre: 360/70/R28
5) Front Tyre: 6.0×16 | Rear Tyre: 360/70/R24
6) Front Tyre: 6.5×16 | Rear Tyre: 420/70R24
Cabin HVAC
Front Mudguard Standard
*Data and specifications are subject to change without any advance notice due to continuous product improvement and development. All Dimensions are with standard tyres.

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Trailer

Planter

Rotary Slasher
