Features

Engine

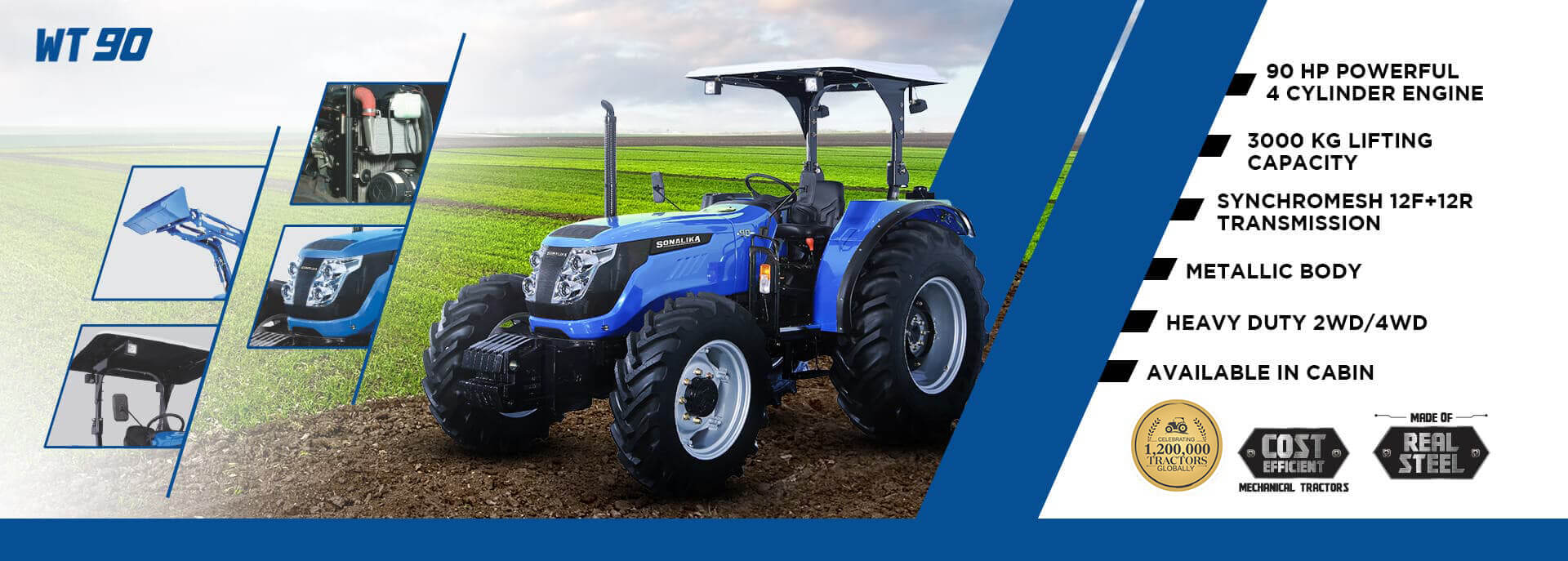

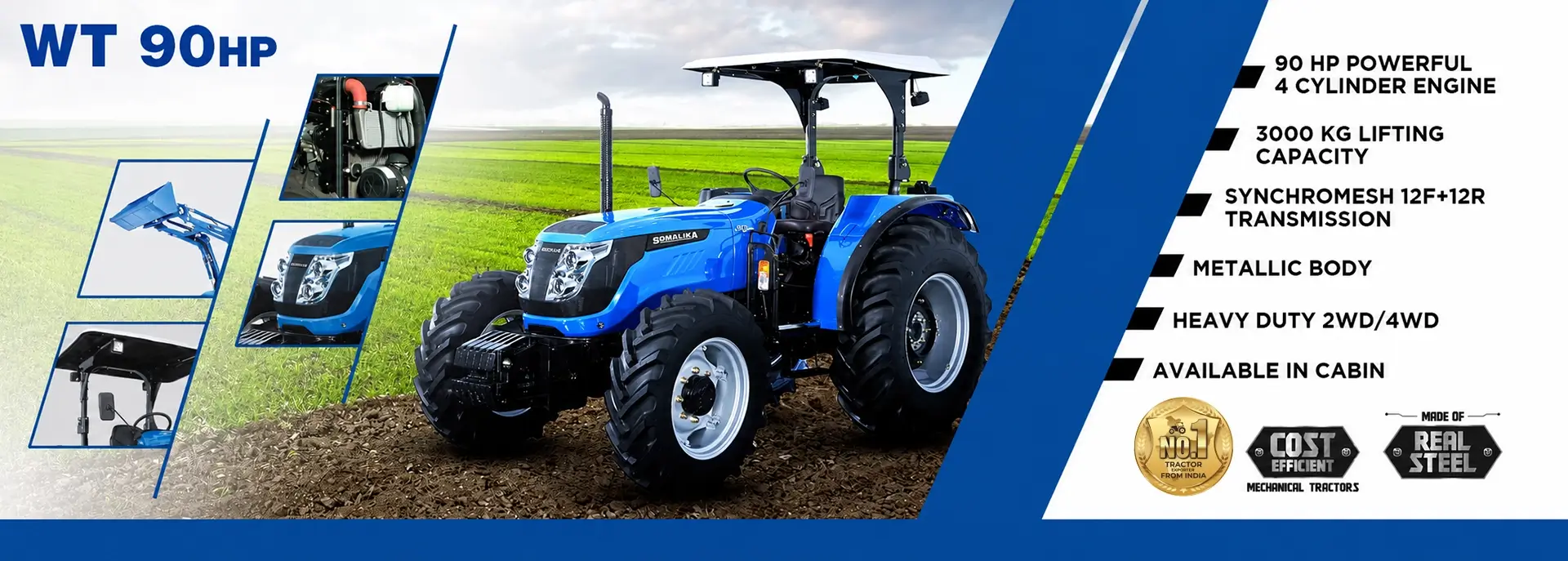

Powerful 90 HP 4 Cylinder Engine

Lifting Capacity

Heavy Duty 3000 Kg Lifting Capacity

Reinforced Safety Features

Metalic Body, Better comfort & safety during tough jobs

Variants

Heavy Duty 2WD/4WD

Synchromesh 12F+12R Transmission

Jerk Free & Noise free Gear Shifting

For comfortable operations under tough weather conditions

Available in Cabin

Technical Specifications

Engine

Engine Type 4 Cylinder Turbo Charged Engine
HP Category 90
No. of Cylinders 4
Aspiration Turbo Charged
Cubic Capacity (cc) 4087
Rated RPM (+/-mm) 2200
Air cleaner Dry Type with Clogging Sensor
Cold Start Yes (Optional)
Max Torque (nm) (+/- 5%) 339 @ (1400±100)ERPM
Exhaust Underhood Downdraft Silencer Underhood Upward

Transmission

Drive 4WD
Clutch Dual Clutch
Gearbox 12F+12R
Transmission Synchronmesh

Speed (Forward)

Maximum Speed (Km/Hr) 35.73 @ 2200
Minimum Speed (Km/Hr) 1.69 @ 2200

Brakes

Brakes Oil Immersed Brakes
Type of actuation Mechanical
Parking Brake Independent

Differential Lock

Differential Lock Standard, Foot Operated

PTO

PTO (RPM) 540/540E | 540/1000 (Optional)
PTO (Actuation) Mechanical

Steering

Steering Power

Electrical

Battery 12V, 88AH or 110AH
Alternator 12V
Seven Pin Trailer Socket Standard

Hydraulics

3 Point Linkage CAT-II
Stay Bars Adjustable
Hydraulic Lifting Capacity 2500Kg (3000 Kg Optional)
Auxiliary Hydraulic Circuit 2SA/2DA
Lift Rods Standard

Safety Switch

Clutch Safety Switch Standard
PTO Safety Switch Standard
Neutral Safety Switch Standard

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Lit) 64

Turning Radius

Without Brakes (m) LHS-6.13, RHS-6.18

Tyre

Front 12.4-24
Rear 18.4-30

Dimention & Weight (+/- 5%)

Weight (Kg) 3570
Wheel Base (mm) 2350
Total Length (mm) 4330
Total Width (mm) 1910
Height (mm) Up to ROPS 2820
Min Ground Clearance (mm) 400
Front Track (mm) (Standard) 1495-1835
Rear Track (mm) (Standard) 1500-1900

Others

Fuel Indicator Gauge Standard
Front Tow Hook Standard, Inbuilt in Front Weight
Front & Rear Weights with Std. Ballast Front- 2X30 Kg and 24KgX4 Rear- 4X24 Kg
Trailer Hitch Swinging Drawbar
ROPS Standard

Optional Features

Canopy HVAC, Heater Cabin
Front Mudguard Standard
Trailer Brake HTB/ATB
Engine Stage IIIA
Tyres
Creeper
Front: 13.6X24, Rear: 16.9X34, 13.6X38
Radial: 320/85R24, 460/85R30

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Trailer

Planter

Rotary Slasher
