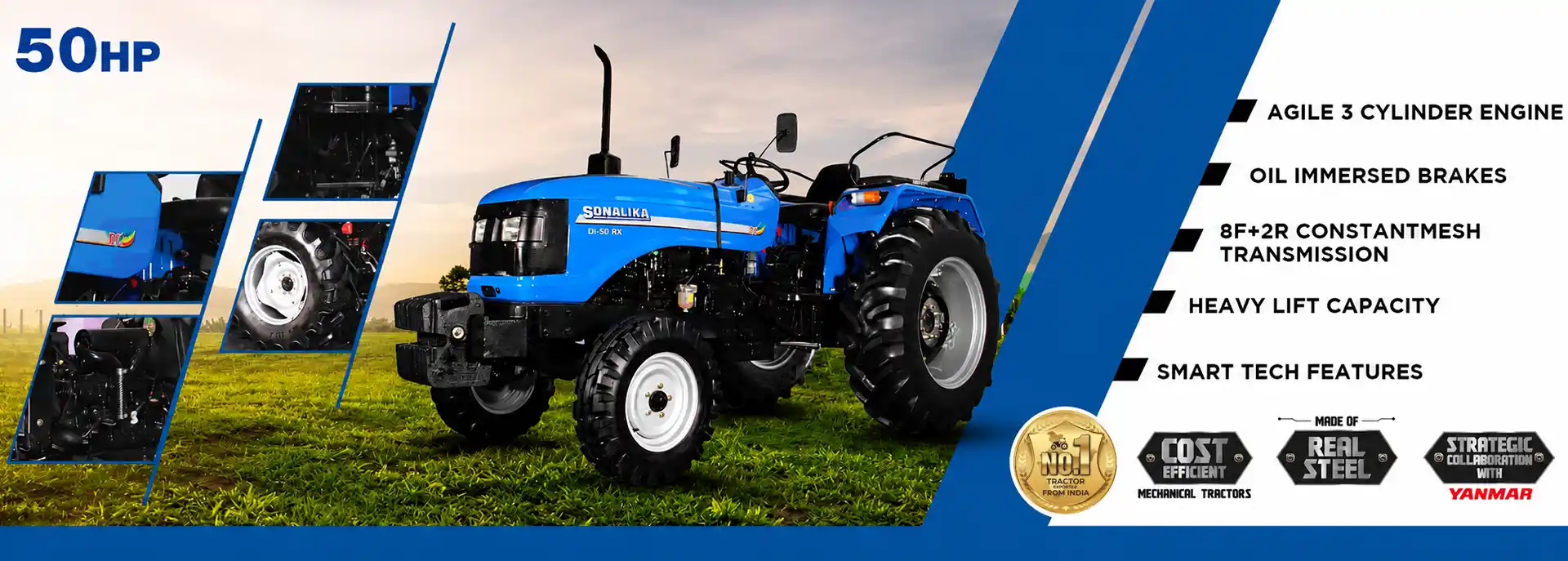

Sonalika DI 50 RX 2WD

Features

Engine

Three Cylinder Natural Aspirated Engine

Lifting Capacity

Heavy Duty 1600 Kg Lifting Capacity

8F+2R Swift Shift Transmission

Jerk Free & Noise free Gear Shifting

Reinforced Safety Features

Metalic Body, Better comfort & safety during tough jobs

Variants

Heavy Duty 2WD

Technical Specifications

Engine

Engine Type Three Cylinder Natural Aspirated Engine
HP Category 50
No. of Cylinders 3
Aspiration Natural
Cold Start No
Cubic Capacity (cc) 2893
Rated RPM 2100
Air cleaner Dry Air Cleaner with Clogging sensor
Cold Start Standard
Max Torque (nm) @ RPM 190 (±5%) @ 1200 ± 100
Exhaust Updraft

Transmission

Drive 2WD
Clutch Single
Gearbox 8F+2R
Front Axle Fixed Type
Transmission Constant Mesh

Speed (Forward)

Maximum Speed (Km/Hr) 3.04
Minimum Speed (Km/Hr) 30.68

Brakes

Brakes Oil Immersed Brakes
Type of actuation Mechanical
Hand Brake Yes

Differential Lock

Differential Lock Yes, Foot Operated

PTO

PTO (RPM) 540
PTO (Actuation) Mechanical

Steering

Steering Power Steering

Electrical

Battery 12V, 88 Ah
Alternator 36 AMP, 12V
Seven Pin Trailer Socket Yes

Hydraulics

3 Point Linkage CAT-II
Lifting Capacity 1600 kg
Auxiliary Hydraulic Circuit  1SA

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Lit) 55

TURNING CIRCLE IN (M)

Without Brakes (m) 7.41

Tyre

Front  6-16
Rear 13.6-28

Dimention & Weight (+/- 5%)

Gross Weight(kg) 1837 (Unballast Weight)
Wheel Base (mm) 2074
Total Length (mm) 3880
Total Width (mm) 1776
Height (mm) (upto Exhaust Pipe) 2277
Ground Clearance (mm) min 392

Others

Fuel Indicator Gauge Yes
Front Tow Hook Yes, inbuilt in front weight
Front & Rear Weights with Std. Ballast Base Weight 72 Kg + 4*31 Kg
Trailer Hitch Auto Trailer Hitch

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Trailer

Planter

Rotary Slasher

Paddy filed
