Features

Engine

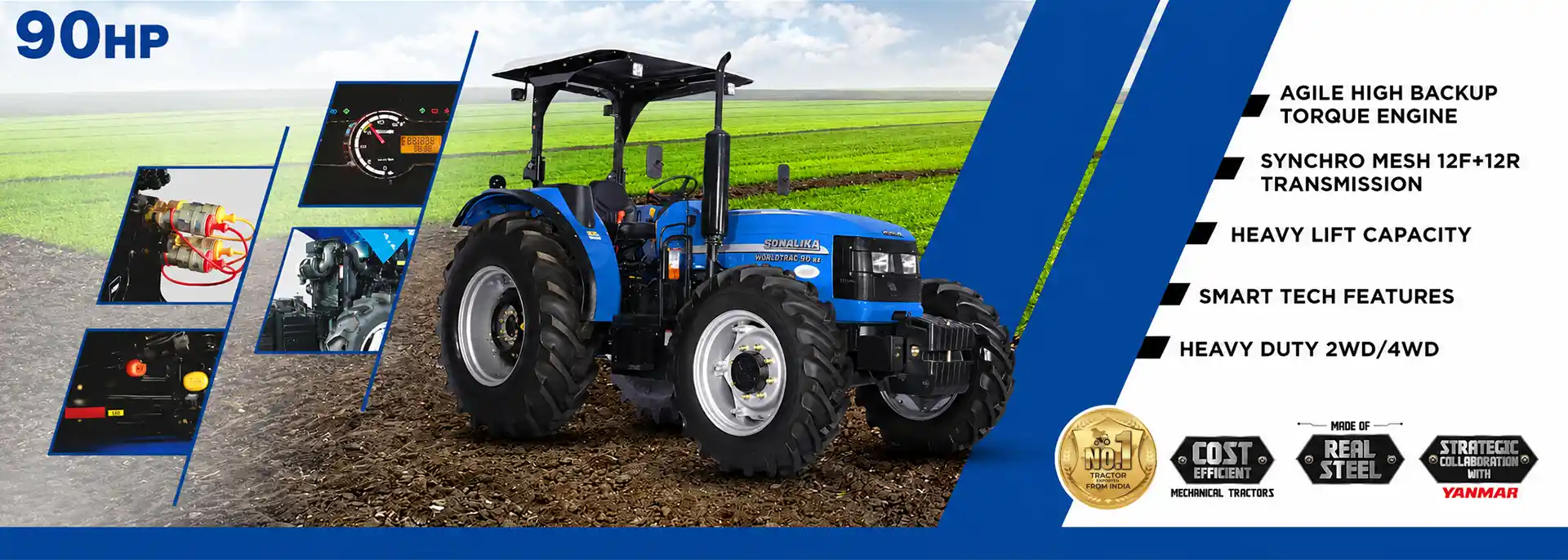

Powerful 90 HP 4 Cylinder Engine

Lifting Capacity

Heavy Duty 3000 Kg Lifting Capacity

Reinforced Safety Features

Metalic Body, Better comfort & safety during tough jobs

Variants

Heavy Duty 2WD/4WD

Synchromesh 12F+12R Transmission

Jerk Free & Noise free Gear Shifting

Technical Specifications

Engine

Engine Type 4 Cylinder Turbo Charged Engine
HP Category 90
No. of Cylinders 4
Aspiration Turbo Charged
Cubic Capacity (cc) 4087
Rated RPM (+/-mm) 2200
Air cleaner Dry Air Cleaner with Clogging Sensor
Cold Start Standard
Max Torque (nm) (+/- 5%) 276.79 @ 2200
Exhaust Underhood Downdraft Silencer Underhood Upward

Transmission

Drive 4WD
Clutch Double Clutch
Gearbox 12F+12R
Transmission Synchronmesh

Speed (Forward)

Maximum Speed (Km/Hr) 35.2@2200
Minimum Speed (Km/Hr) 0.57@2200

Brakes

Brakes Oil Immersed Brakes
Type of actuation Mechanical
Parking Brake Independent

Differential Lock

Differential Lock Mechanical, Foot Operated

PTO

PTO (RPM) 540/540E
PTO (Actuation) Mechanical

Steering

Steering Power

Electrical

Battery 12V 110 AH
Alternator 12V, 36Amps
Seven Pin Trailer Socket Standard

Hydraulics

3 Point Linkage CAT-II
Stay Bars Adjustable
Hydraulic Lifting Capacity 2500Kg (3000 Kg Optional)
Auxiliary Hydraulic Circuit  2DA/2SA
Lift Rods Standard

Safety Switch

Clutch Safety Switch Standard
PTO Safety Switch Standard
Neutral Safety Switch Standard

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Lit) 78

Turning Radius

Without Brakes (m) LHS-6.13, RHS-6.18

Tyre

Front 12.4*24
Rear 18.4*30

Dimention & Weight (+/- 5%)

Weight (Kg) 3255
Wheel Base (mm) 2350
Total Length (mm) 3980
Total Width (mm) 2400
Height (mm) Up to ROPS 2640
Min. Ground Clearance (mm) 3405
Front Track (mm) (Standard) 1495-1835
Rear Track (mm) (Standard) 1500-1900

Others

Fuel Indicator Gauge Standard
Front Tow Hook Standard, Inbuilt in Front Weight
Front & Rear Weights with Std. Ballast Front:- 10*31Kg
Rear:- 1*34 Kg on each wheel
Trailer Hitch Swinging Drawbar
ROPS Standard

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Trailer

Planter

Rotary Slasher
