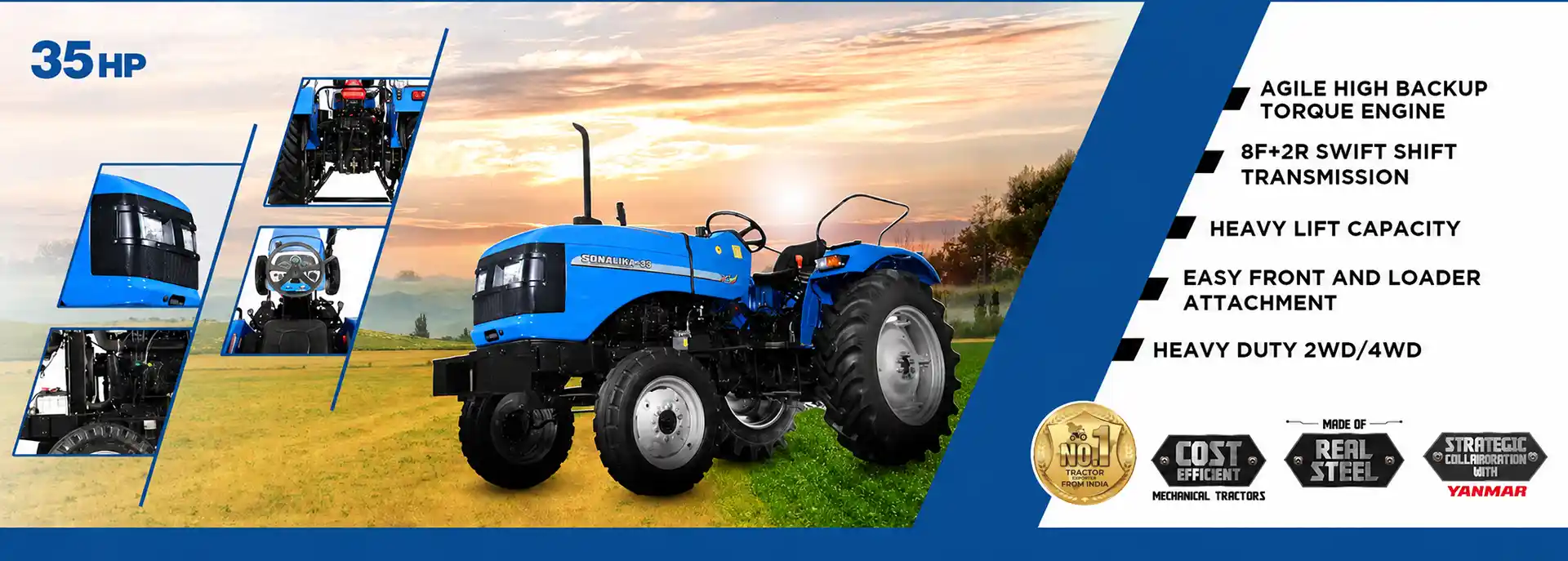

Sonalika-Zambia 35
Enquiry
Features
Specification
Download Brochure
Enquiry
Features
Specification
Download Brochure

Features

Engine

Agile High Backup Torque Engine

8F+2R Transmission

Jerk Free & Noise free Gear Shifting

Lifting Capacity

Heavy Duty Lifting Capacity

Variants

Heavy Duty 2WD/4WD

Attachment

Easy front and loader attachment

Technical Specifications

Engine

Engine Type 3100 FLS without coldstart
HP Category 35
No. of Cylinders 3
Aspiration Natural
Cubic Capacity (cc) 2780
Rated RPM 2000
Air cleaner Dry Air Cleaner with Clogging sensor
Max Torque (nm) 157(+/-5%)@1Z00RPM(+/-100)
Exhaust Updraft Upward

Transmission

Drive 2WD
Clutch Single Clutch
Gearbox 8F+2R
Front Axle 2WD
Transmission Constant Mesh

Speed (Forward)

Maximum Speed (Km/Hr) 31.74@2000
Minimum Speed (Km/Hr) 2.25@2000

Brakes

Brakes Oll Immersed Brake
Type of actuation Mechanical
Parking Brake Standard

Differential Lock

Differential Lock Yes, Foot Operated

PTO

PTO (RPM) 540
PTO (Actuation) Mechanical

Steering

Steering Mechanical

Electrical

Battery 12V, 88 Ah
Alternator 12V, 36 Amp
Seven pin trailer socket Yes





Hydraulics

3 Point Linkage CAT-II
Stay Bars Adjustable
Hydraulic lifting capacity 1200 kg
Auxiliary hydraulic circuit 2DA
Lift rods Yes

Safety Switch

Neutral Safety Switch Yes

Capacity (Ltrs) (+/- 5%)

Fuel Tank (Lit) 55
Engine Oil (Lit) 8.2
Hydraulic Transmission Oil 50.3



Turning Radius

Without Brakes (m) 3.7

Tyre

Front 6×16
Rear 13.6×28

Dimention & Weight (+/- 5%)

Weight (Kg) 2080
Wheel Base (mm) 1970
Total Length (mm) 3610
Total Width (mm) 1705
Height (mm) up to Exhaust pipe   2320
Min Ground Clearance (mm) 387
Front Track (mm) 1300-1500
Rear Track (mm) 1365-1890

Others

Fuel Indicator Gauge Yes
Front Toe Hook Yes, inbuilt in front welght
Front & rear weights with std. Ballast Base welght 54 kg
Trailer Hitch Standard rear tow hook
Drawbar Linkage cross bar

Application

Rotavator

Front End Loader

Cultivator

Disc Harrow

Rotary Slasher
