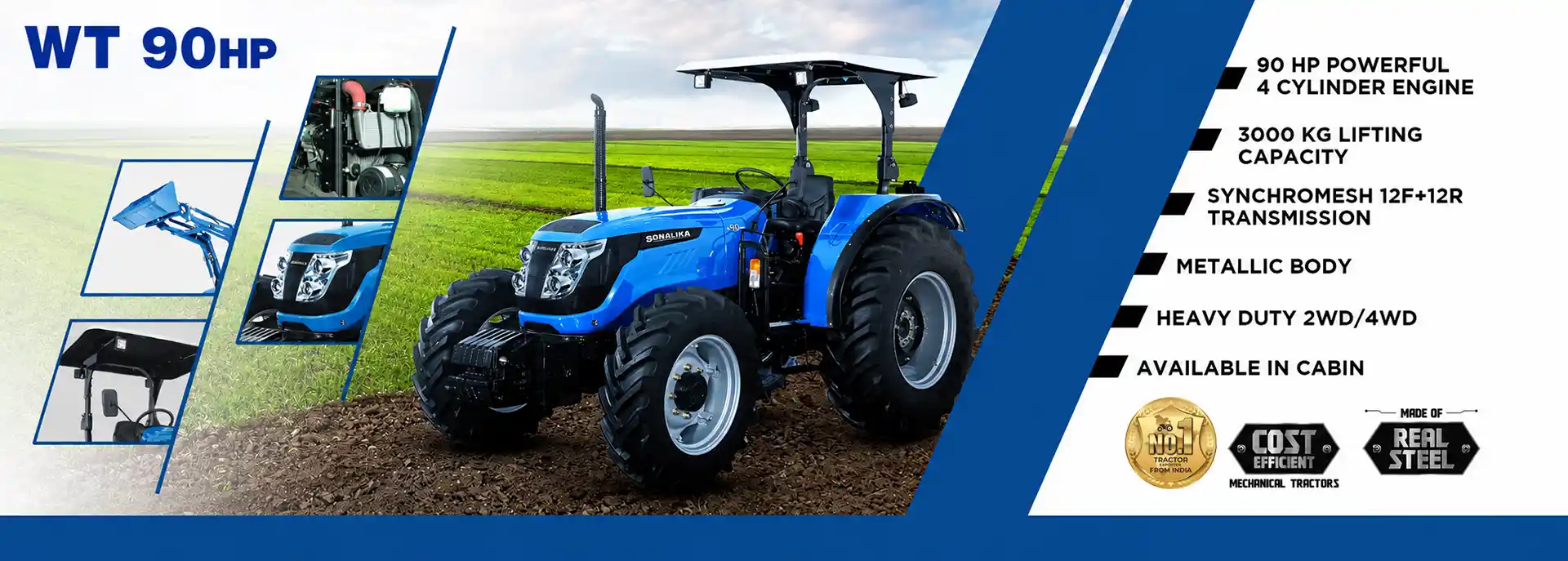

Features
Engine
Powerful 90 HP 4 Cylinder Engine
Lifting Capacity
Heavy Duty 3000 Kg Lifting Capacity
Reinforced Safety Features
Metalic Body, Better comfort & safety during tough jobs
Variants
Heavy Duty 2WD/4WD
Synchromesh 12F+12R Transmission
Jerk Free & Noise free Gear Shifting
For comfortable operations under tough weather conditions
Available in Cabin
Technical Specifications
Engine
| Engine Type | 4 Cylinder Turbocharged |
| HP Category | 90 |
| Emission | Stage 2 / Stage 3 |
| Aspiration | Aspiration Turbo Charged |
| No. of Cylinders | 4 |
| Cubic Capacity (cc) | 4087 |
| Rated RPM | 2200/2000 |
| Air Cleaner | Dry Type |
| Max Torque (Nm) | 339@1300 | 360@1300 |
| Exhaust | Updraft / Downdraft (Optional) |
| Muffler | Under-hood |
Transmission
| Drive | 4WD |
| Clutch | Clutch |
| Gearbox | 12F+12R |
| Front Axle | 4WD |
| Transmission | Synchromesh Shuttle Transmission |
Speed (Forward)
| Maximum Speed (Km/Hr) | 35.73 @ 2200 |
| Minimum Speed (Km/Hr) | 1.69 @ 2200 |
Brakes
| Brakes | Oil Immersed Brake |
| Type of Actuation | Mechanical |
| Parking Brake | Mechanical, Hand Operated |
Differential Lock
| Differential Lock | Standard |
PTO
| PTO (RPM) | 540/540E & 540/1850 (Optional) |
| PTO (Actuation) | Mechanical |
Steering
| Steering | Power |
|---|
Electrical
| Battery | 12V, 110 Ah |
| Alternator | 12V, 36 AMP |
| Seven Pin Trailer Socket | Output 12V |
Hydraulics
| 3 Point Linkage | CAT-II |
| Stay Bars | Adjustable |
| Hydraulic Lifting Capacity | 2500 kg |
| Auxiliary Hydraulic Circuit | 2DA/2SA |
Safety Switch
| PTO Safety Switch | Standard |
|---|---|
| Neutral Safety Switch | Standard |
Capacity (Ltrs) (+/- 5%)
| Fuel Tank (Ltr) | 65+25 (Auxiliary) |
Turning Radius
| Without Brakes (m) | 4.79 |
Tyre
| Front | 12.4 – 24 |
| Rear | 18.4 – 30 |
Dimention & Weight (+/- 5%)
<table class="mytable"
Weight (kg)
3570
Wheel Base (mm)
2350
Total Length (mm)
4330
Total Width (mm)
1990
Height (mm) Up to ROPS
2820
Min. Ground Clearance (mm)
400
Front Track (mm)
1495-1835
Rear Track (mm)
1500-1900
Others
| Fuel Indicator Gauge | Standard |
| Front Tow Hook | Standard, Inbuilt in Front Weights |
| Front Weights with std. Ballast | Front – 30*2+25*4 Rear – 34*1 |
| Trailer Hitch | Swinging Draw Bar with Rotating Tow Hook |
| Roll Over Protection | Standard |
Optional Features
| Cabin | Optional |
| Front Mudguarg | Optional |
| Front and Rear Weights | Front 25×2 Rear weights: 1×34 kg on each wheel |
| Carraro Transmission | Creeper Transmission (in Carraro Transmission) |
| Optional Tyre Size | 1.Front Tyre:12.4×24 | Rear Tyre:18.4×30(R-2) 2.Front Tyre:320/85R24 | Rear Tyre:460/85R30 3.Front Tyre:12.4×24 | Rear Tyre:13.6×38 4.Front Tyre:9×16 | Rear Tyre:18.4×30 5.Front Tyre:9×16 | Rear Tyre:13.6×38 6.Front Tyre:13.6×24 | Rear Tyre:16.9×34 |
*Data and specifications are subject to change without any advance notice due to continuous product improvement and development. All Dimensions are with standard tyres.
