CULTIVATOR

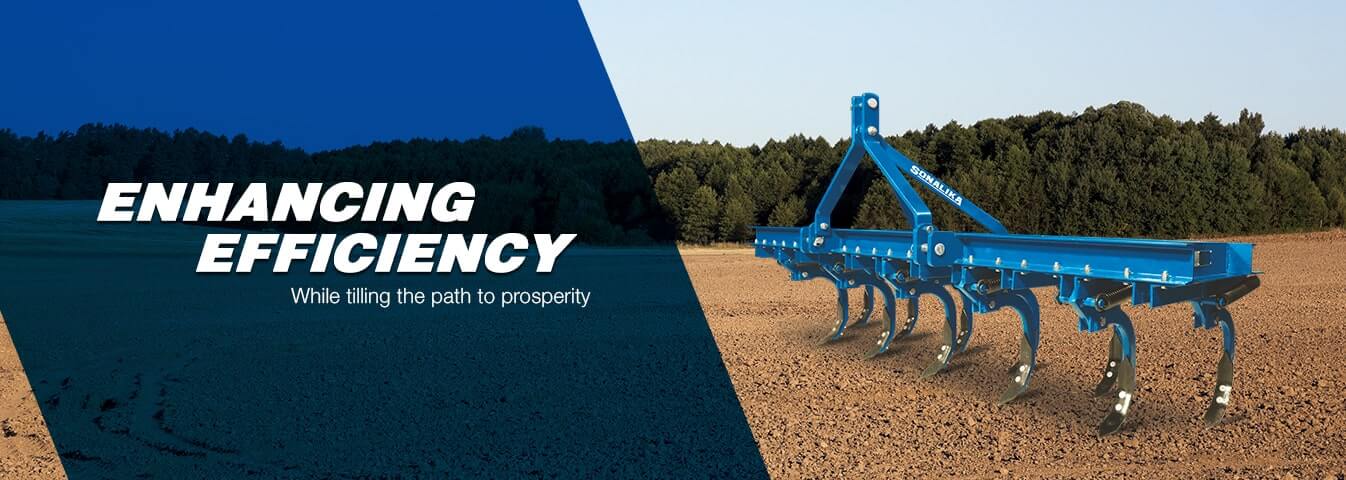

CULTIVATOR DOUBLE SPRING LOADED SERIES
The Double spring loaded series is the best choice for working in soils embedded with stones & stumps. The independent working of
each tine with high quality springs allows the movement of the tine in case of any obstacle leaving other tines operating at the same
depth. The prominent & authentic features loosens & aerates the soil to the adequate depth with maximum efficiency.
HEAVY DUTY CHANNEL
ENSURES STRUCTURAL
STABILITY
SHOCK ABSORBING COIL SPRING ENSURES IDEAL MOVEMENT OF THE TYNE TO RIDE OVER THE OBSTACLE AND MINIMISE THE DAMAGE
HIGH CARBON STEEL REVERSIBLE SHOVEL ENSURES MINIMUM WEAR GIVES MAXIMUM RELIABILITY
POWDER COATED PAINT ENSURES MINIMUM RUST ON THE IMPLEMENT
Technical Specification
| Model | Spring (mm) | Tyne (mm) | Shovels (mm) | Width (mm) | Length (mm) | Height (mm) | Weight (Kg. Approx.) |
Tractor Power (HP)
|
|
|
Double Spring
Loaded Series |
SL-CL-MS5 |
9.5 WD /
44 OD/27 Coil |
22×19 (Forged)
|
8(EN-45)
|
1205 |
834
|
930
|
140 | 20-24 |
| SL-CL-MS7 | 1640 | 170 | 26-30 | ||||||
| SL-CL-MH9 |
10 WD / 50 OD
/ 28.5 Coil |
50×25 (Forged)
|
2039 |
878
|
1157
|
290 | 45+ | ||
| SL-CL-MH11 | 2492 | 370 | 55+ | ||||||
| SL-CL-MH13 | 2945 | 440 | 65+ | ||||||
| SL-CL-MH15 | 3520 |
915
|
1170
|
520 | 75+ | ||||
| SL-CL-HF15 | 3520 | 540 | 75+ | ||||||
| SL-CL-HF17 | 3970 | 550 | 90+ | ||||||
