Disc Harrow

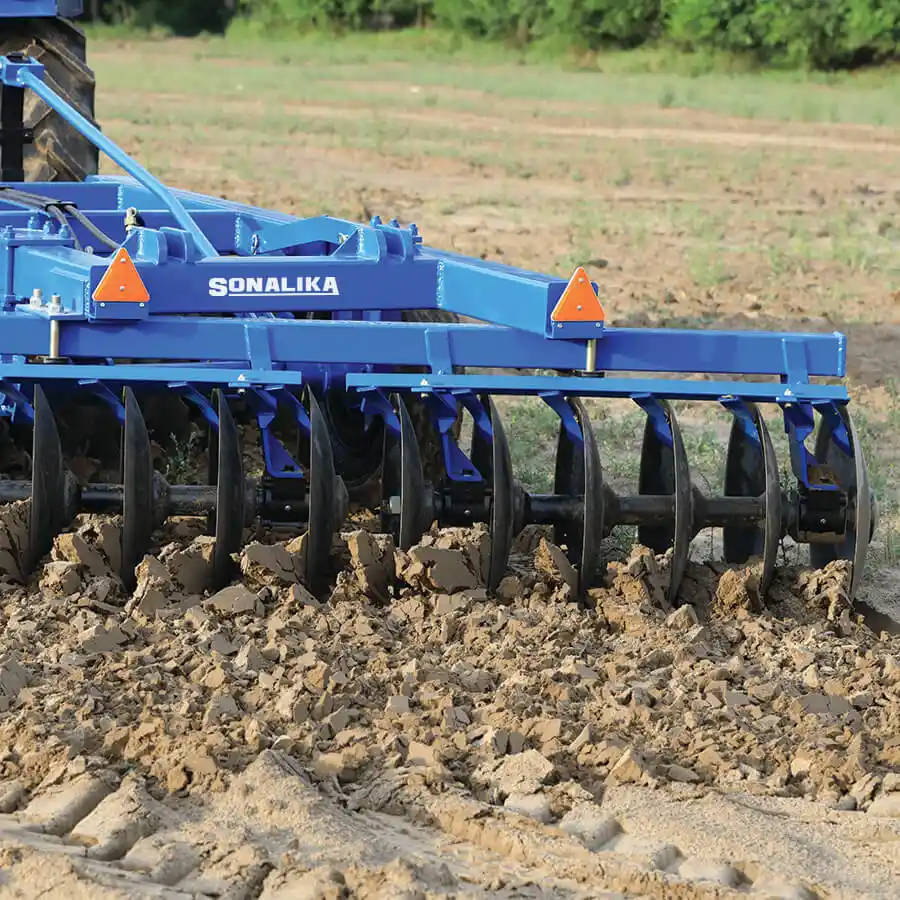

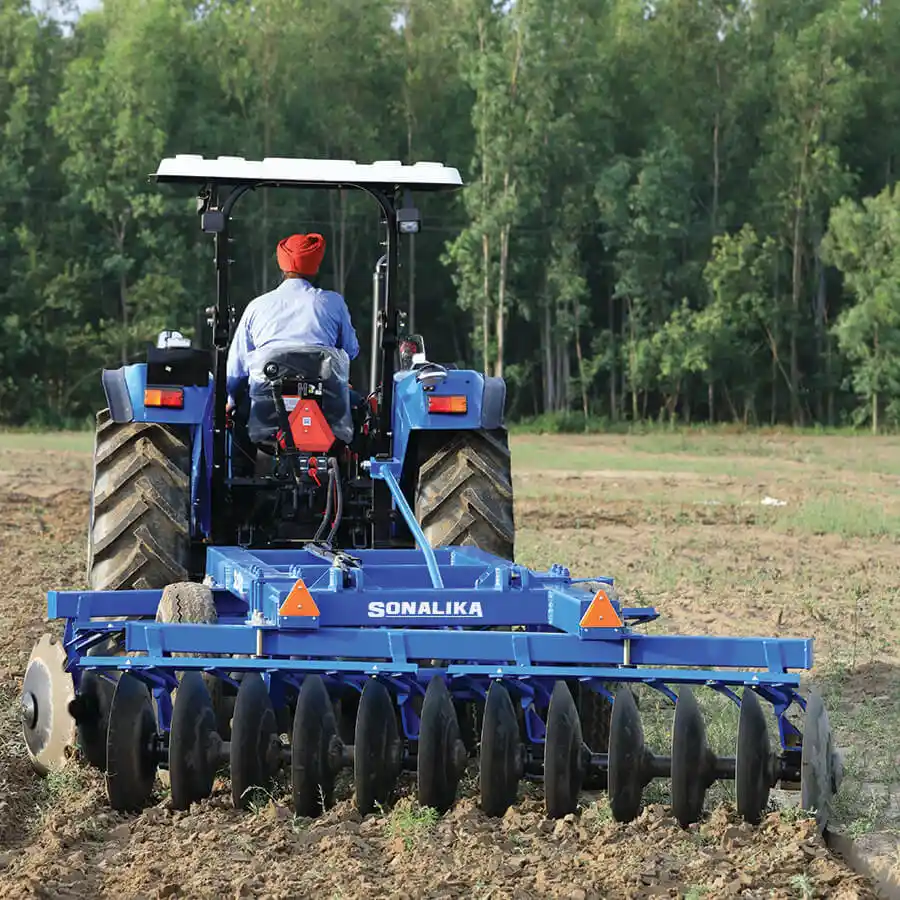

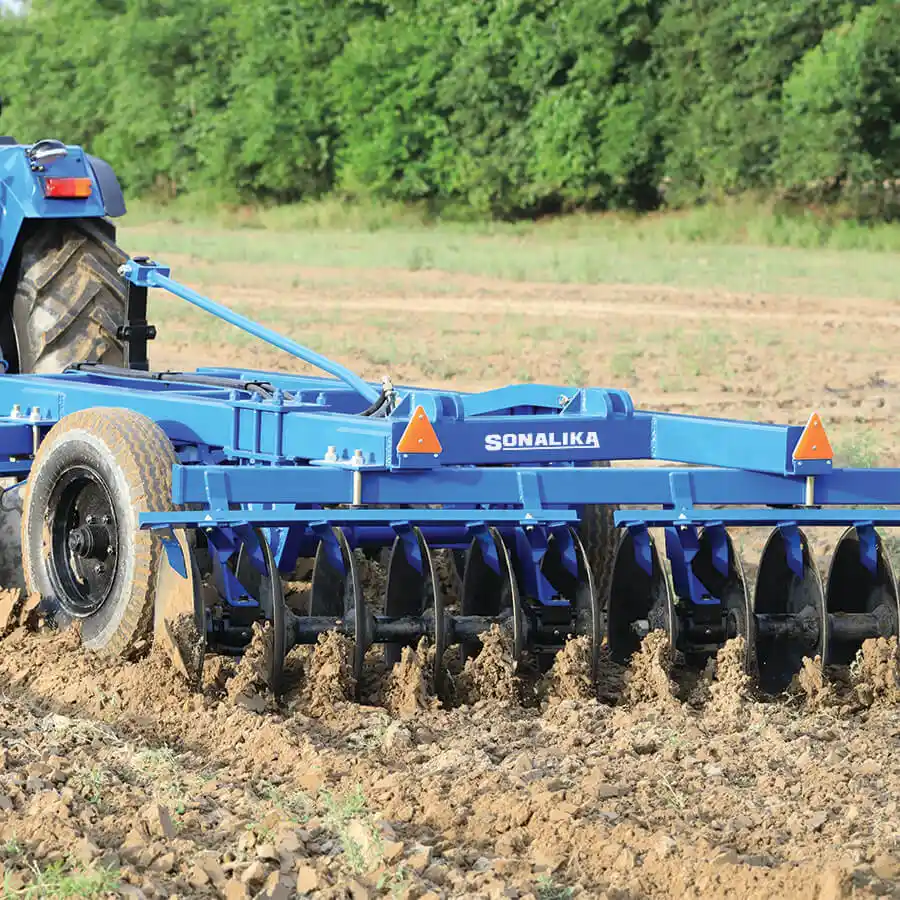

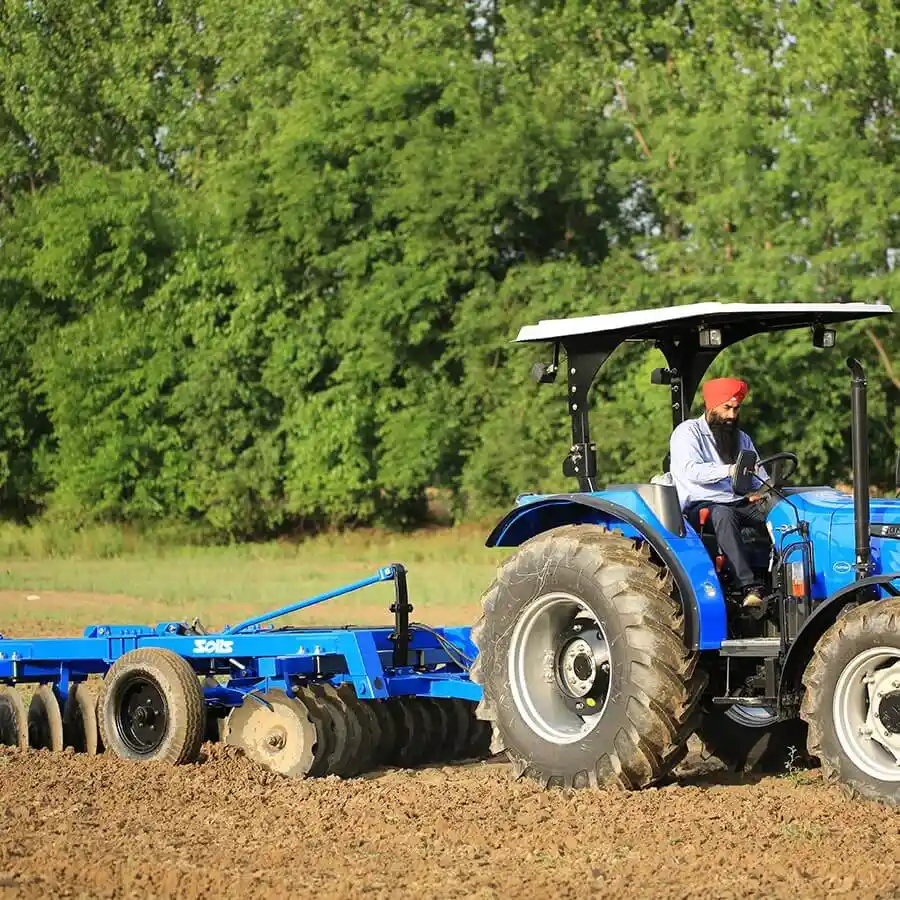

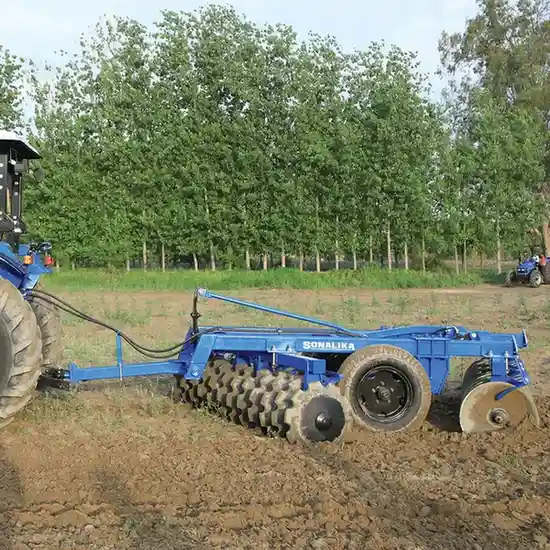

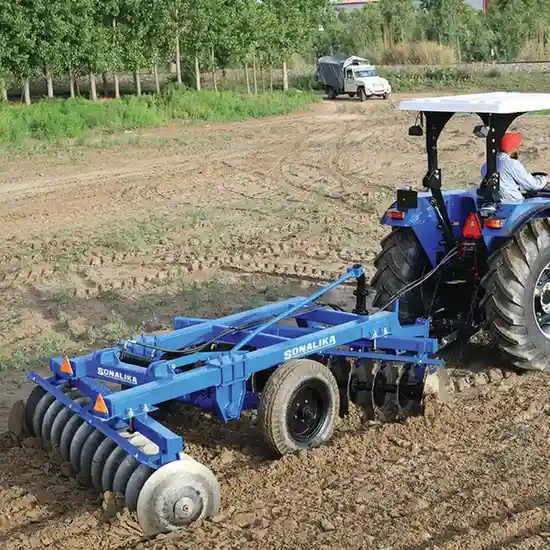

Disc Harrow Hydraulic Trailed Type with Tyres

Disc harrow is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders. The discs are also offset so that they are not parallel with the overall direction of the implement. This arrangement ensures that the discs will repeatedly slice any ground to which they are applied, in order to optimize the result. The concavity of the discs, as well as their offset angle, causes them to loosen and lift the soil that they cut.

Three beam heavy structure frame. helps to penetrate in soil easily

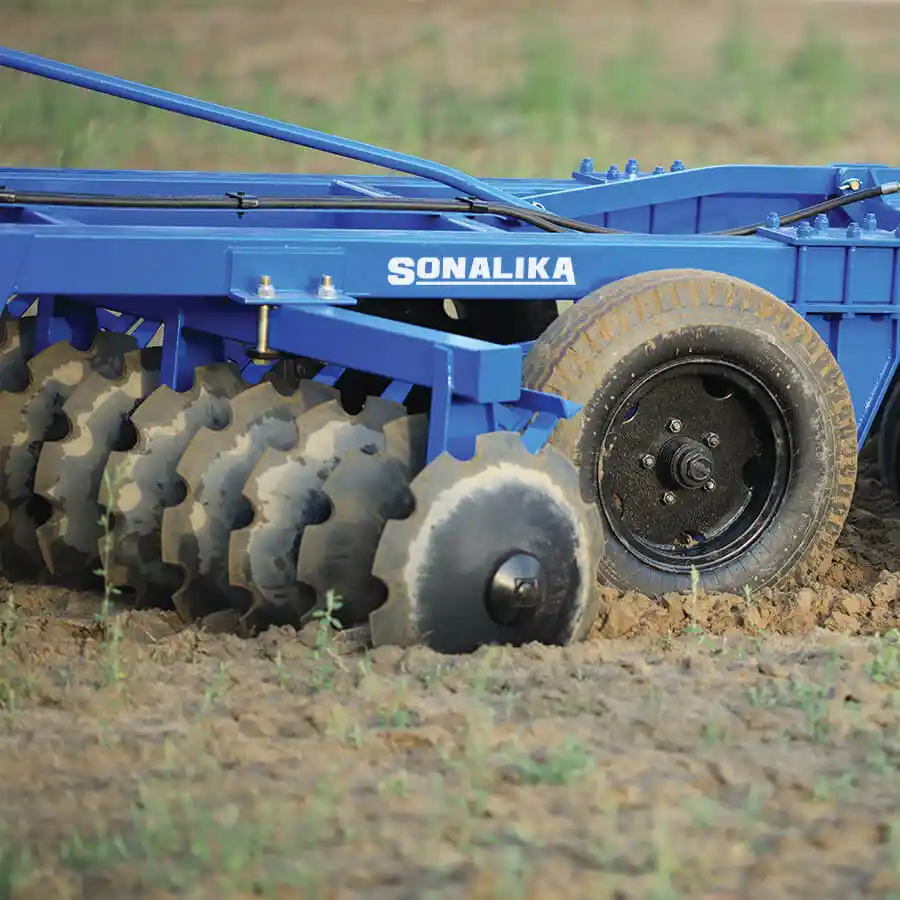

Notched blade helps harrow to penetrate in field easily

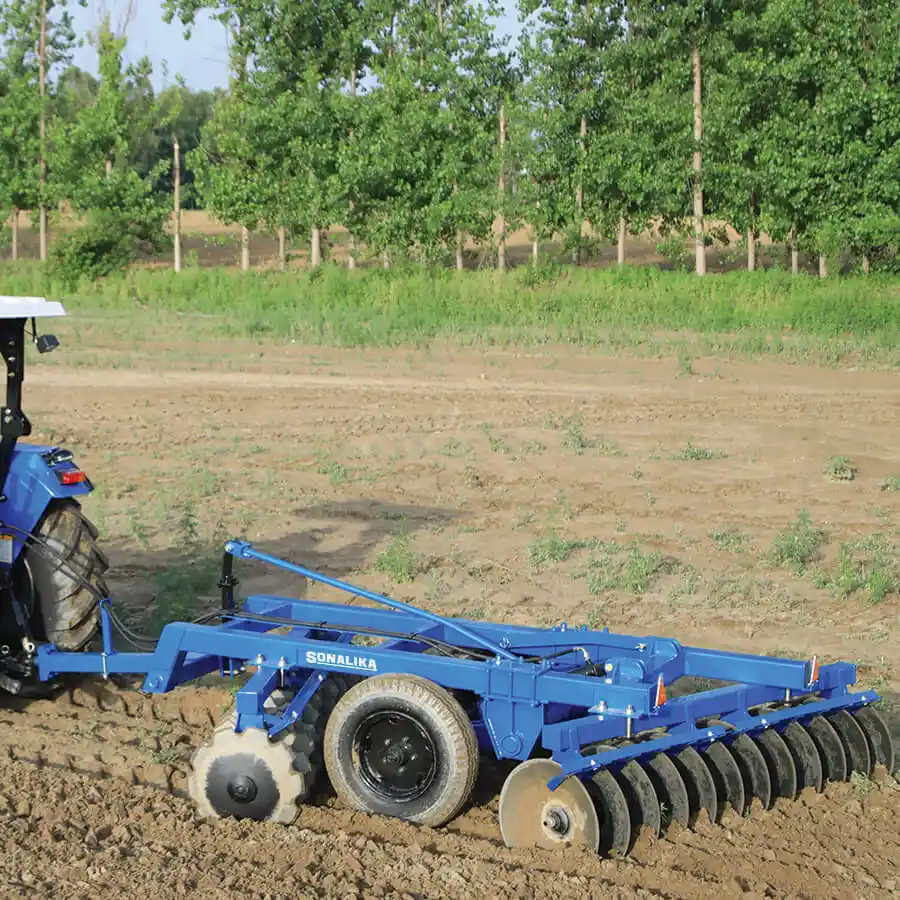

Hydraulically lifted center tyre for ease in transportation
It kills off unwanted crops and remainders that would otherwise hinder the growth of the wanted crops

Technical Specification

Model Name Model No. of Disk Gang Type Frame Size(mm) Gang Shaft(mm) Disc Diameter (mm) Type of Disc Bearing Hubs Hydraulic Jack Tyre Weight(kg.approx) Tractor Power (HP)
SL-THD-10 10X10 20 SPLIT GANG Heavy Duty tube 6mm Square Solid Bar 40 mm 660 mm x 6 mm Notched in front & pain in Rear 8 Nos.S.G. Iron(500/7) Double Action Hydraulic jack with hoses & Coupling Wider Tubeless Tyre 1780 75+
SL-THD-12 12X12 24 1970 90+
SL-THD-14 14X14 28 2190 105+
SL-THD-10-H 10X10 20 132 mm Square Square Solid Bar 32 mm 610 mm x 5 mm Taper Roller Bearing 1270 60+
SL-THD-12-H 12X12 24 1400 80+
SL-THD-14-H 14X14 28 1510 95+
SL-THD-16-H 16X16 37 1700 110+
