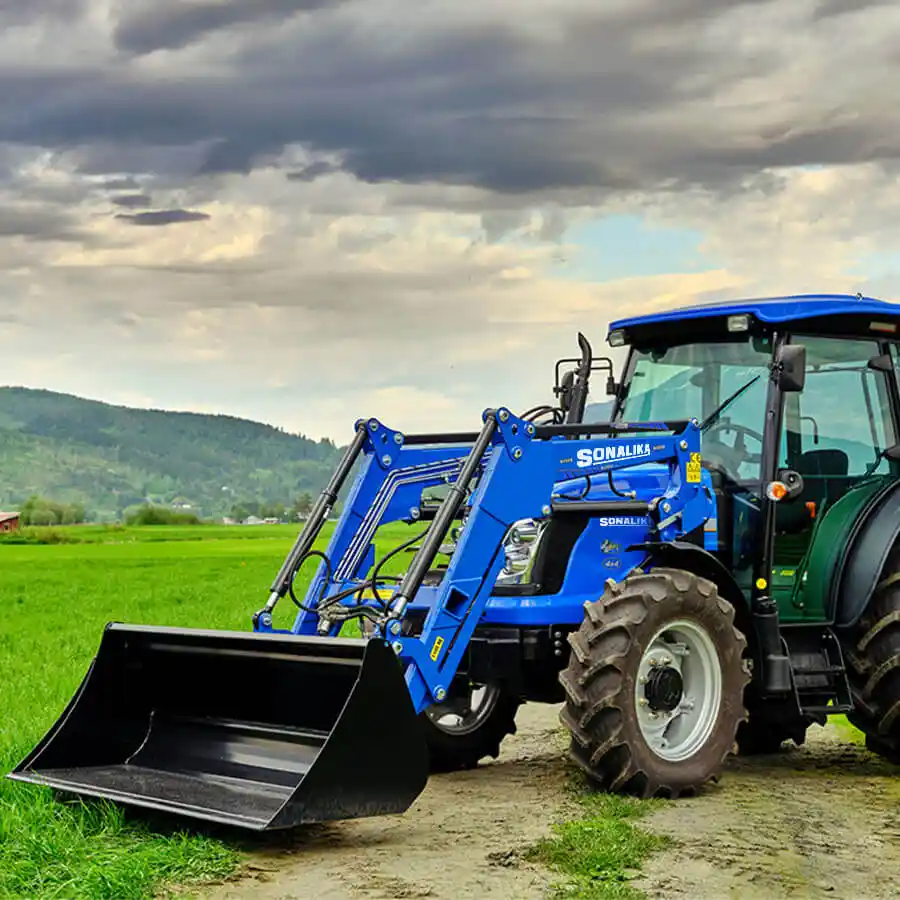

Front End Loader
Front End Loader
A loader is a type of tractor, usually wheeled, sometimes on tracks, that has a front-mounted wide bucket connected to the end of two booms (arms) to scoop up loose material from the ground, such as dirt, sand of gravel, and move it from one place to another without pushing the material across the ground.
Bale Grab
4 In 1 Bucket
Standard Bucket
Skid Steer Bucket
Pallent Fork
Manure Fork
Grabber Bucket
Stick Rake
Smart Hitch
Stone Bucket
Technical Specification
| Loader Model Name Tractor (HP) |
2400 15-24 |
3200 15-26 |
5500 40-60 |
7300 50-80 |
8300 50-90 |
8700 70-110 |
| Maximum Lift Height At Bucket Pivot Pin (mm) | 1900 | 2170 | 2800 | 3110 | 3460 | 3720 |
| Maximum Lift Height At Bottom Of Bucket (mm) | 1752 | 1950 | 2530 | 2770 | 3120 | 3380 |
| Dump Clearance (mm) | 1435 | 1635 | 2085 | 2200 | 2560 | 2810 |
| Overall Height In Carry Position (mm) | 1120 | 1170 | 1600 | 1820 | 1890 | 1990 |
| Lifting Arm Pivot (mm | 950 | 1000 | 1450 | 1600 | 1700 | 1850 |
| Dump Angle (°degree) | 46 | 45 | 44 | 59 | 54 | 55 |
| Crowd Angle Loader at Ground Level (°degree) | 44 | 43 | 32 | 45 | 46 | 45 |
| Crowd Angle Loader at Full Height (°degree) | 48 | 47 | 40 | 48 | 48 | 48 |
| Digging Depth (mm) | 60 | 106 | 140 | 430 | 280 | 230 |
| Reach Under Dump Bucket (mm)** | 380 | 790 | 800 | 100 | 725 | 980 |
| Arm Centers (mm) | 800 | 800 | 1000 | 1100 | 1100 | 1100 |
| Bucket Width (mm) | 1200 | 1200 | 1650 | 1800 | 1800 | 2100 |
| Bucket Volume (m3) | 0.13 | 0.13 | 0.34 | 0.47 | 0.47 | 0.55 |
| Bucket Weight (Kg) | 45 | 45 | 160 | 190 | 190 | 210 |
| Rated Capacity (Kg) | 280 | 300 | 800 | 1000 | 1000 | 1200 |
| Lift Capacity To Max Height At Pivot Pins (Kg) | 540 | 430 | 900 | 1220 | 1300 | 1460 |
| Lift Capacity 500 mm Further To Bucket pivot (Kg) | 500 | 400 | – | – | – | – |
| Lift Capacity 800 mm Further To Bucket pivot (Kg) | – | – | 850 | 1240 | 1310 | 1500 |
| Breakout force at pivot pins (KgF) | 540 | 485 | 1540 | 1800 | 1940 | 2130 |
| Roll back force at Ground Level (KgF) | 930 | 920 | 1280 | 2920 | 2930 | 3520 |
| Rollback force loader at max reach (KgF) | 780 | 855 | 1400 | 2670 | 2710 | 3200 |
| Front End Loader Weight (Kg) | 170 | 210 | 550 | 810 | 820 | 950 |
