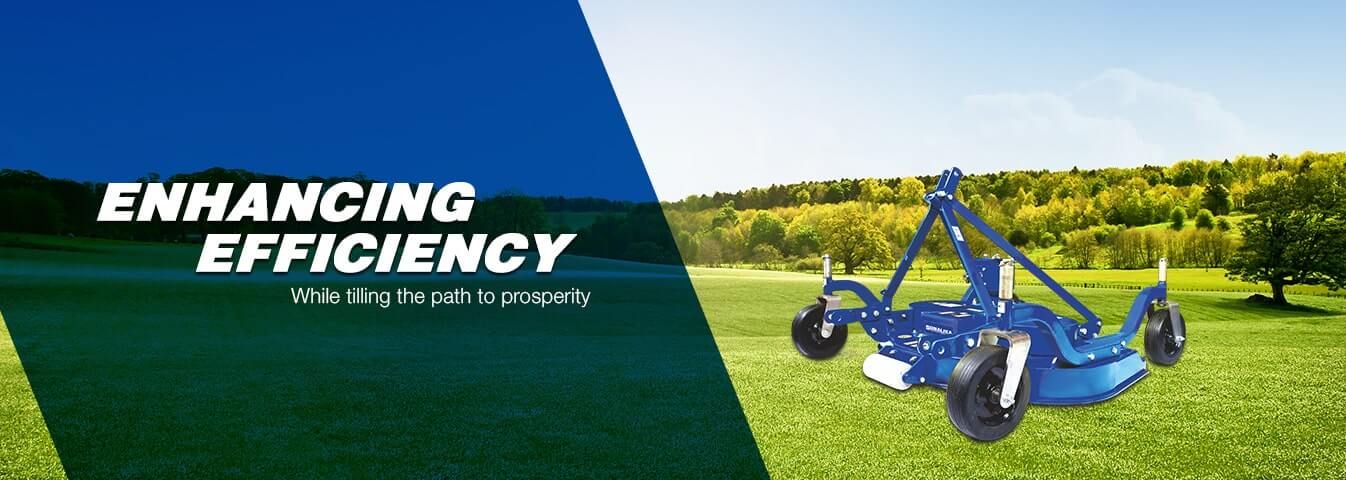

GROOMING MOWER
GROOMING MOWER
Solis Grooming mower is the perfect machine to provide evenly cut grass in lawn. It can be easily rear mounted on the tractor & the 4 pivoting wheels help to provide finished cut by following the contours of the ground. The belt transmission with three equidistant high quality blades helps to provide excellent cut by working close to the ground.
RUGGED GEARBOX
ENSURES EFFICIENT
WORKING IN ALL
CONDITIONS
HIGH QUALITY TWISTED
BLADES PROVIDES EVEN
& SMOOTH CUT
EXTRA WIDE SOLID
TYRES EASILY FOLLOW
THE CONTOURS
ALONG THE GROUND
ROLLOVER WHEEL
AVOIDS EXTRA DAMAGE
& PROVIDES EXTRA SUPPORT
SPACERS ENSURES
EASY ADJUSTMENT
OF HEIGHT
Technical Specification
|
Model Name
|
Overall Length (mm) |
Cutting Width (mm) |
Cutting Height (mm |
3-point Hitch Type |
Tractor Power (HP) |
Wheel Type |
Belt (Number & Type |
Number of blades |
Blade size(mm) |
Blade tip Speed (fpm) |
Spindle Type |
Spindle Bearings |
Front roller |
Deck Thickness (mm) |
Weight (Kg) |
| SLGM-1.2 | 1370x1400x850 | 1210 | 19-110 | Cat-I/II | 16-50 | Solid Tyre 10×3.25 |
2SPB Type 1500 |
3 | 6x60x415 | 13585 | With Greasable Ball Bearing |
Bearing 6206 |
100×240 | 4 | 205 |
| SLGM-1.5 | 1640x1540x850 | 1510 | 19-110 | Cat-I/II | 16-50 | Solid Tyre 10×3.25 |
2 SPB Type 1500 |
3 | 6x60x515 | 14085 | With Greasable Ball Bearing |
Bearing 6206 |
100×240 | 4 | 228 |
| SLGM-1.8 | 1890x1540x850 | 1805 | 19-110 | Cat-I/II | 20-50 | Solid Tyre 10×3.25 |
2 SPB Type 1500 |
3 | 6x60x616 | 14192 | With Greasable Ball Bearing |
Bearing 6206 |
100×240 | 4 | 253 |
