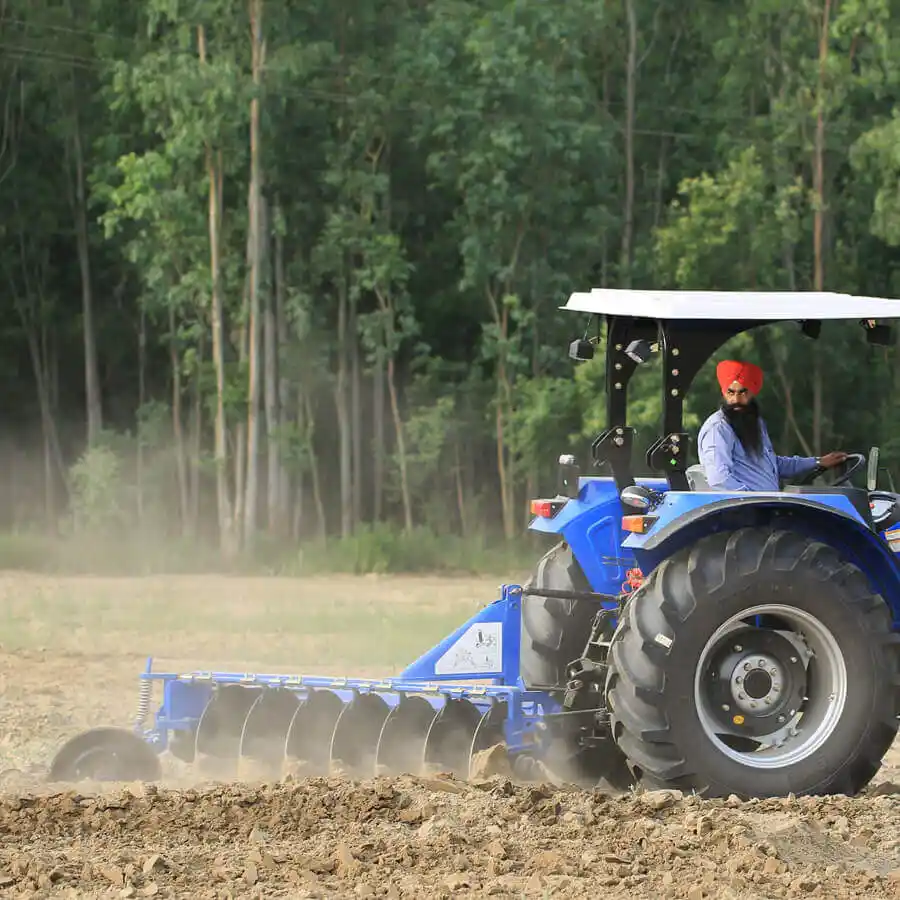

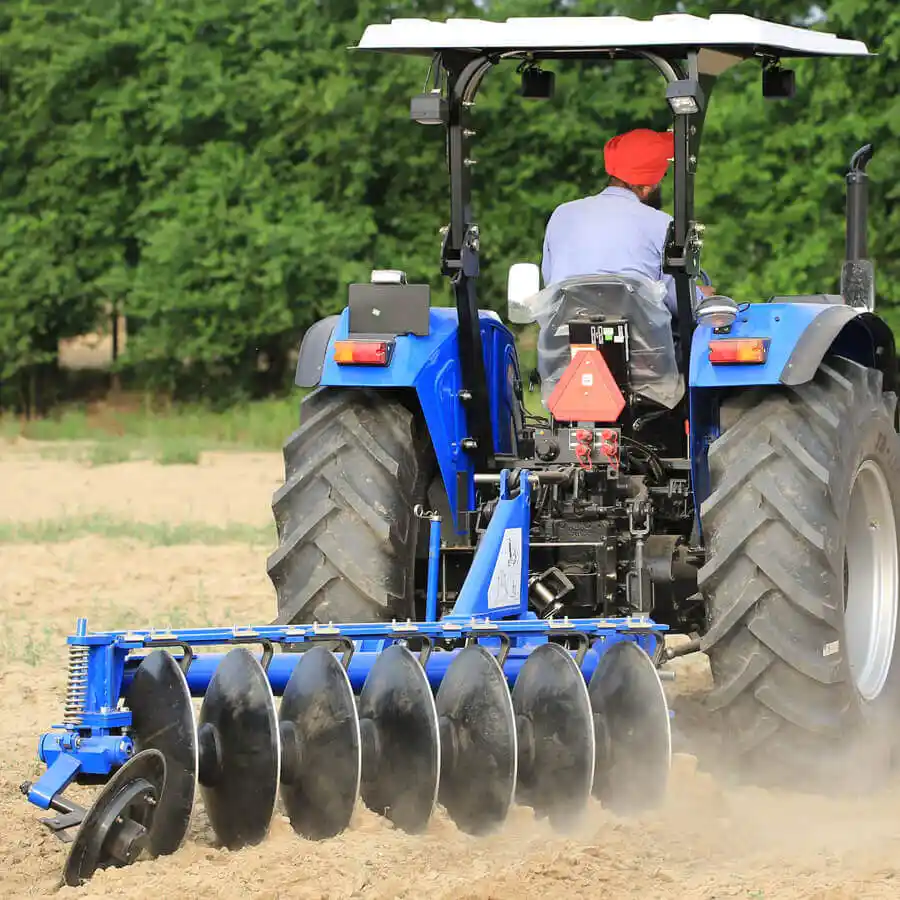

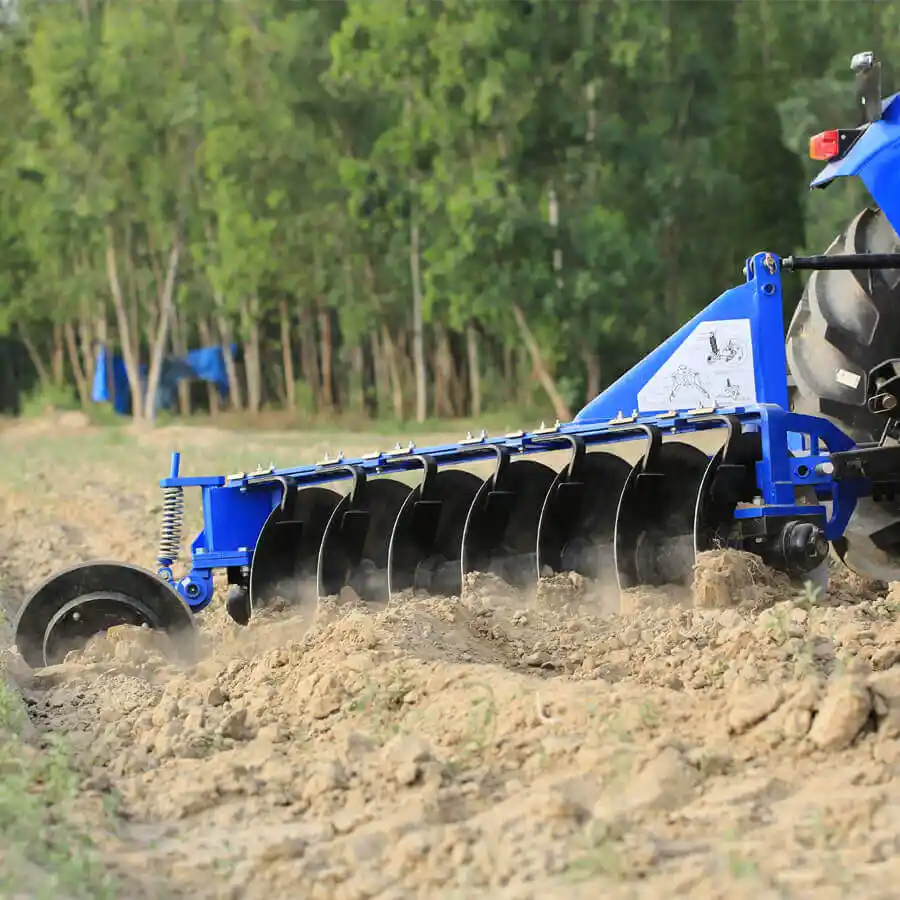

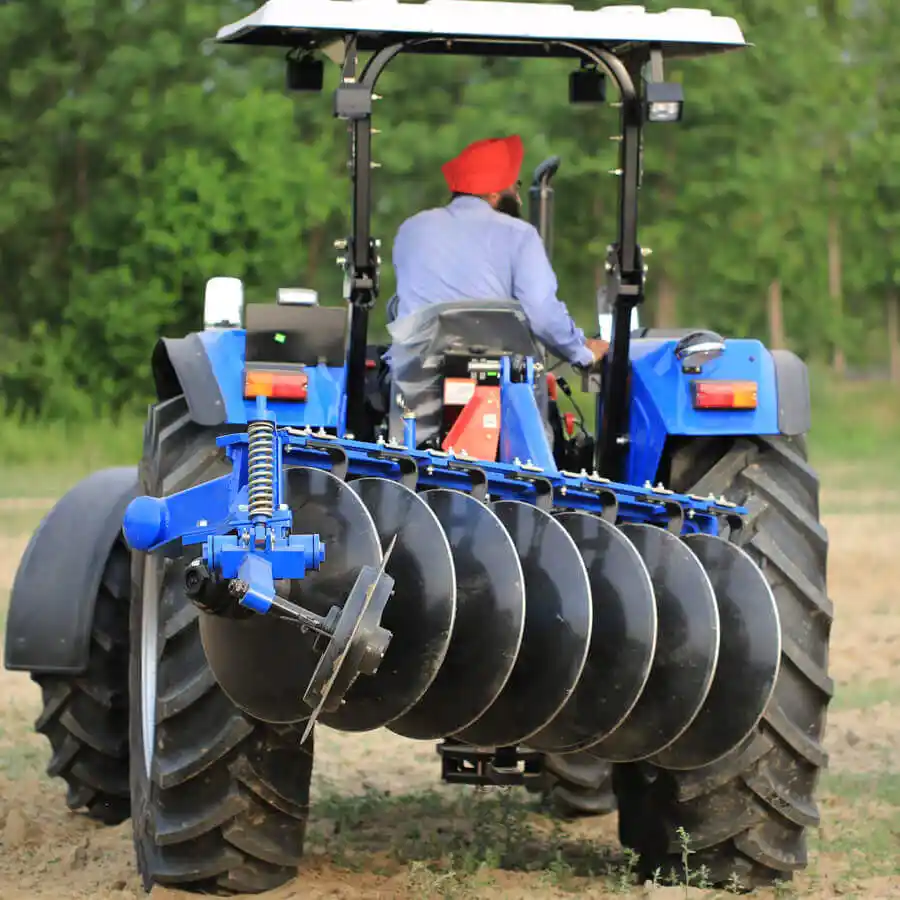

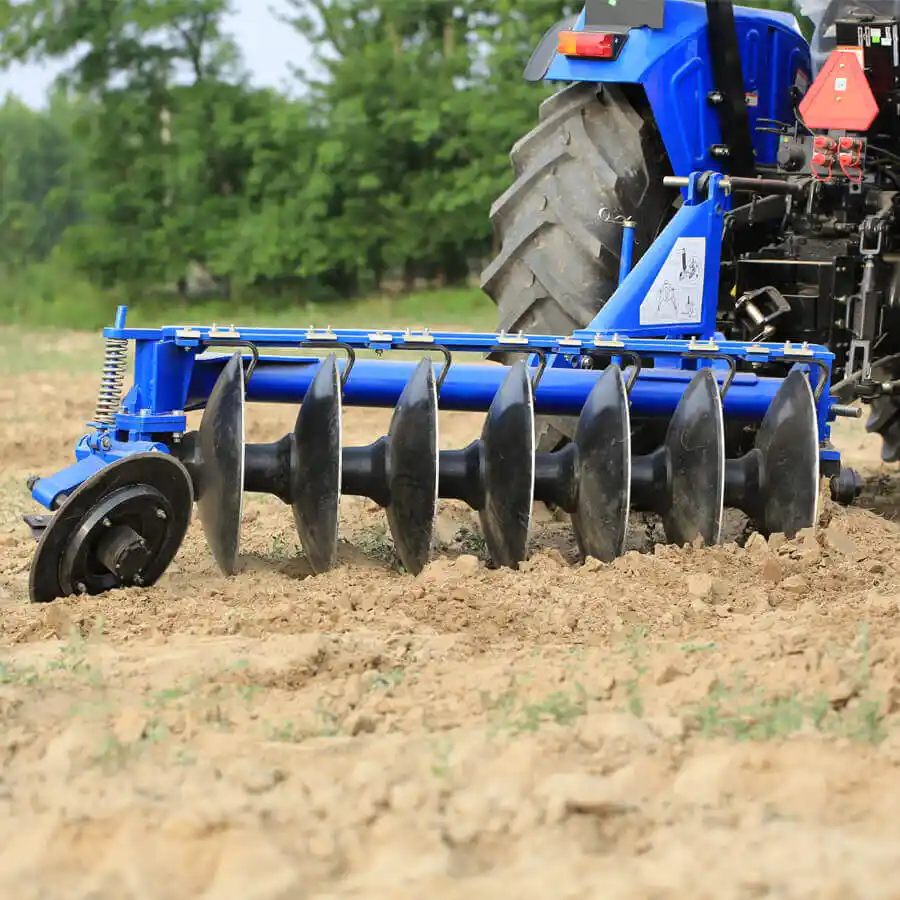

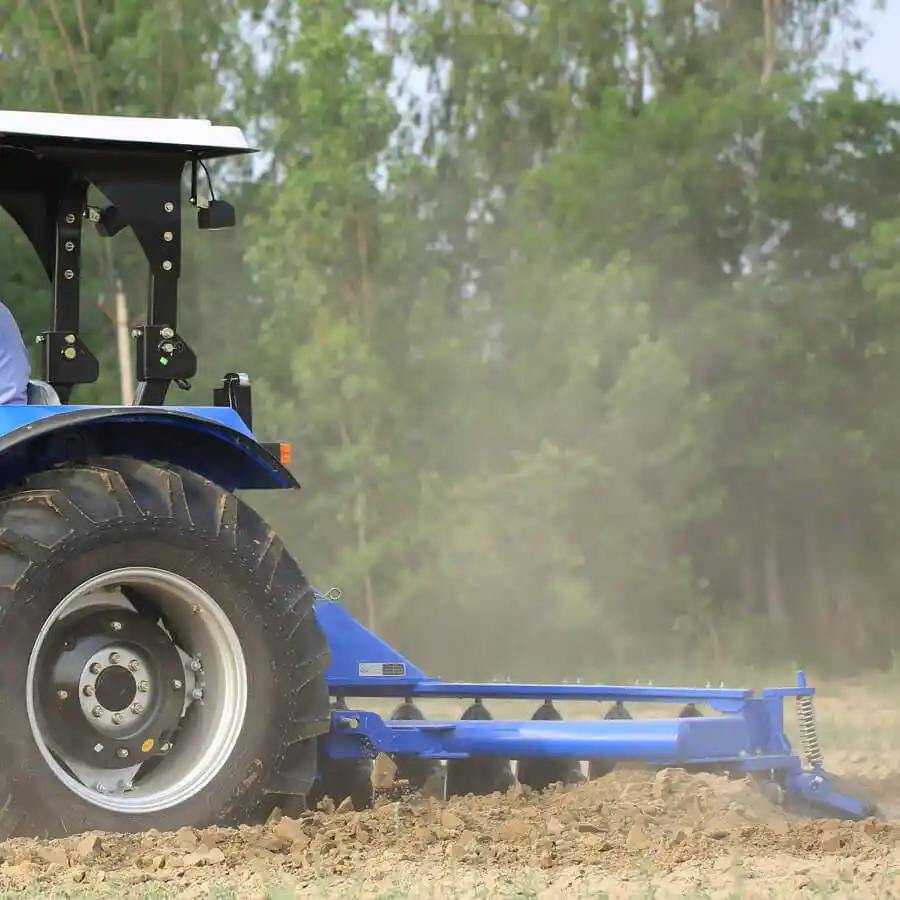

Disc Harrow
Poly Disc Harrow
Disc harrow is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders. The discs are also offset so that they are not parallel with the overall direction of the implement. This arrangement ensures that the discs will repeatedly slice any ground to which they are applied, in order to optimize the result. The concavity of the discs as well as their offset angle causes them to loosen and lift the soil that they cut.
Strong structure to use machine in tough condition without wear and tear
SG iron grade bearing hub with greasing arrangement to avoid dirt and mud entry
Better quality boron steel with 40-48 hrc toughnes
Heavy duty gang axle for toughest operation
Technical Specification
| Model Name | No. of Disc | Frame (mm) | Hub | Disc to Disc Distance (mm) |
Bearing | Colter Disc (mm) | Disc Size (mm) | Power Required (HP) | Approx. Weight (kg) |
| SL-PHD-6 | 6 |
Tubular
125X125X8 |
S.G. Iron
|
265
|
Innner-32212,
Outer -32213 |
508
|
610X5/ 660×6
|
50-70
|
500/550 |
| SL-PHD-7 | 7 | 540/600 | |||||||
| SL-PHD-8 | 8 | 580/650 |
Disc Harrow Mounted Offset
Disc Harrow Compact Disc Harrow
Disc Harrow Hydraulic Trailed Type with Tyres
