ROTAVATOR

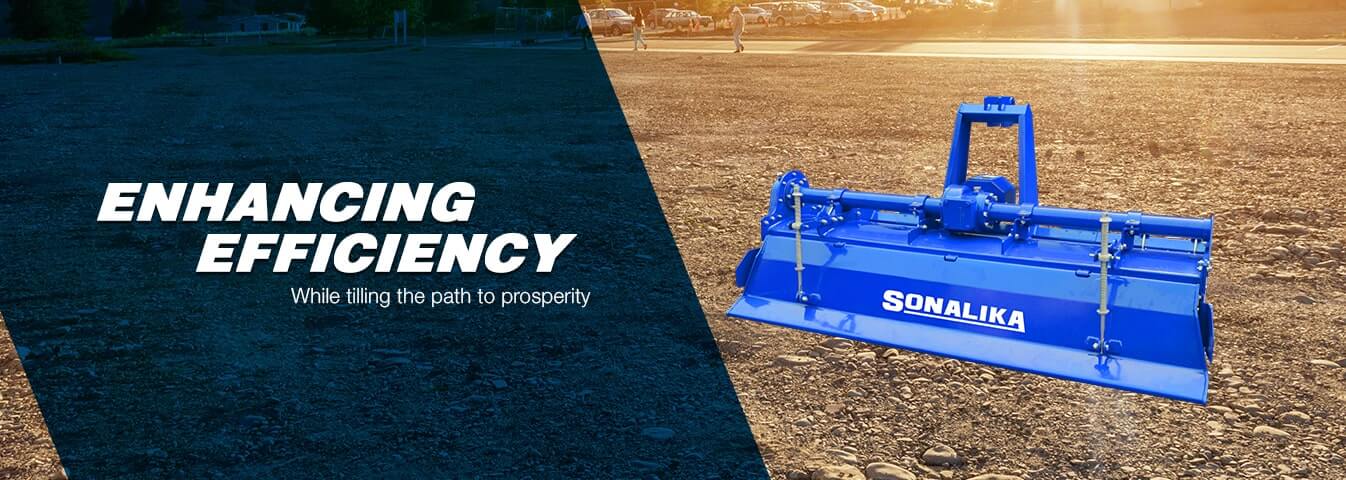

ROTAVATOR CHALLENGER SERIES
The robust design with multispeed heavy duty gearbox, 6 blades per flange, side skids for depth control, spring loaded rear levelling board signifies the primacy of the Challenger Series. Its complete machine for professional hard core agricultural applications.
BIGGER CROWN-PINION & STRONGER TRANSMISSION SHAFT ENSURES EFFICIENT WORKING IN TOUGHEST CONDITIONS.
BORON STEEL BLADES WITH FINER MICROSTRUCTURE HAS BETTER STRENGTH & HARDNESS AND ENSURES WORKING IN THE HARDEST CONDITIONS WITH MINIMUM WEAR
TRAILING BOARD WITH SPRING HELPS IN PROPER LEVELLING & SMOOTH SEEDBED
HEAVY DUTY GEARBOX ENSURES ITS COMPATIBILITY WITH HIGHER HP RANGE UPTO 90 HP
Technical Specification
| Model Name | Size (In Feet) |
Working Width (mm) |
Total Width (mm) |
Weight (Kg. Approx) |
PTO Speed |
Type of Blade |
Gear Box |
Gear Box Overload Protection |
No. of Blades |
Tractor HP required |
|
|
Challenger
Series |
SLCS-5 | 5 | 1490 | 1790 | 418 |
540/1000
|
L
|
Single
Speed |
Shear
Bolt |
36 | 45-50 |
| SLCS-5.5 | 5.5 | 1800 | 1940 | 428 | 36 | 50-55 | |||||
| SLCS-6 | 6 | 1800 | 2040 | 438 | 42 | 50-55 | |||||
| SLCS-7 | 7 | 2000 | 2300 | 458 | 48 | 55-60 |
