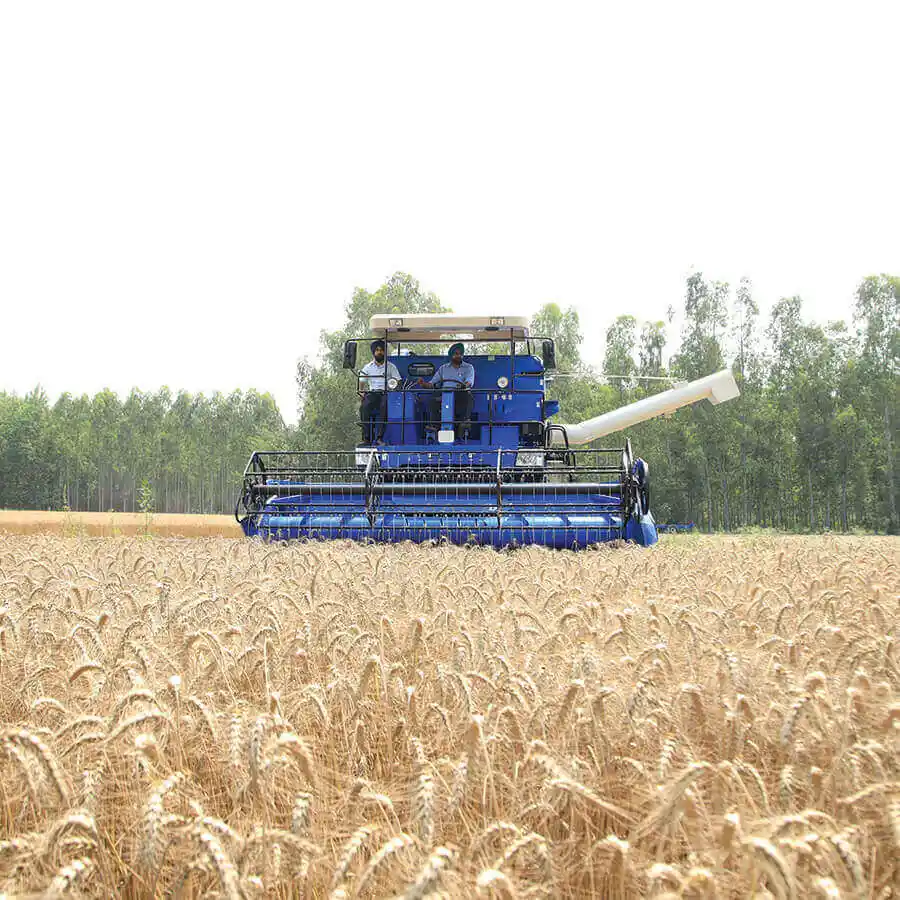

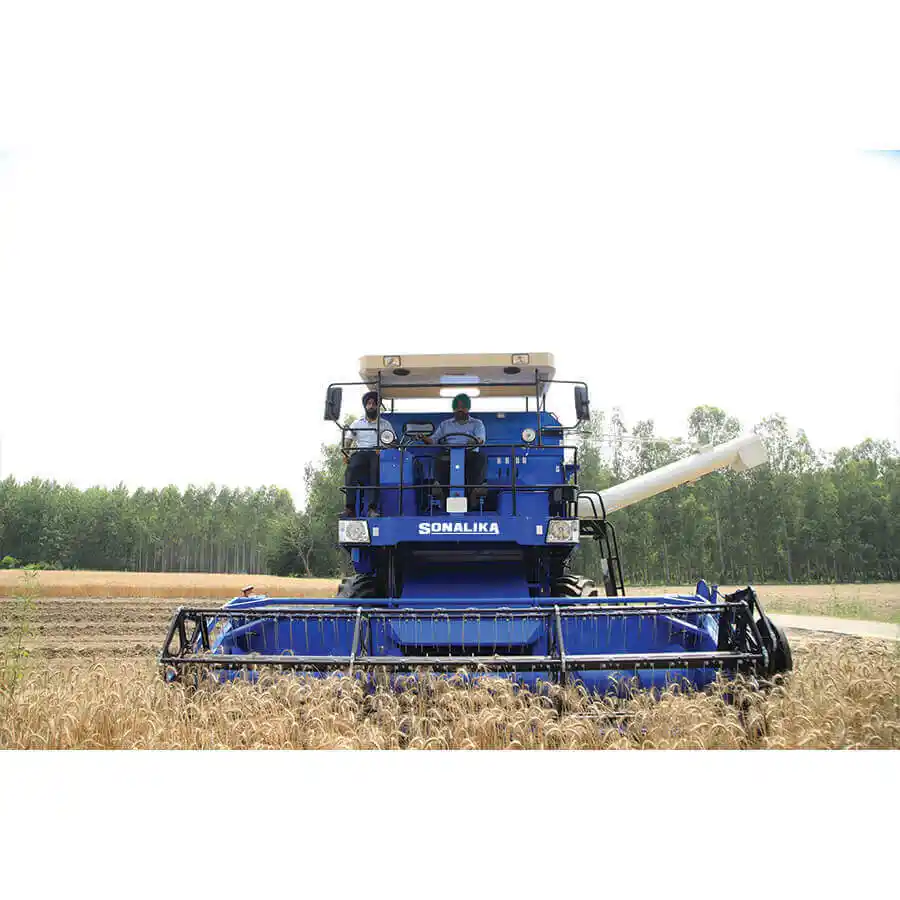

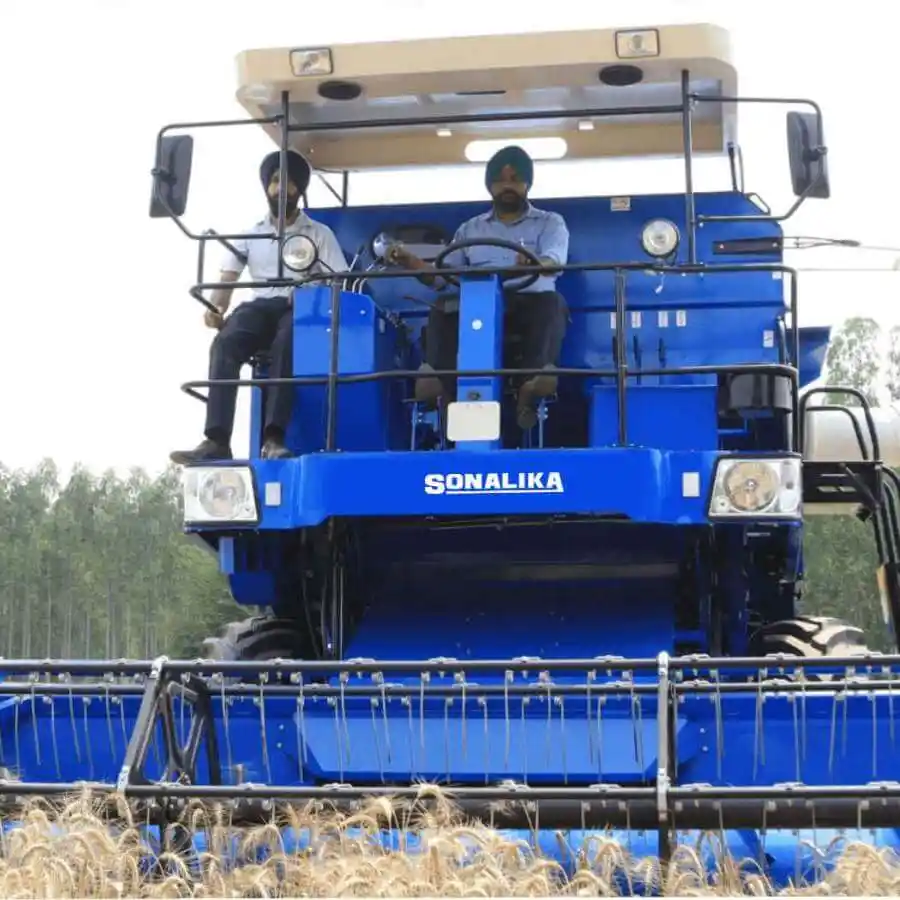

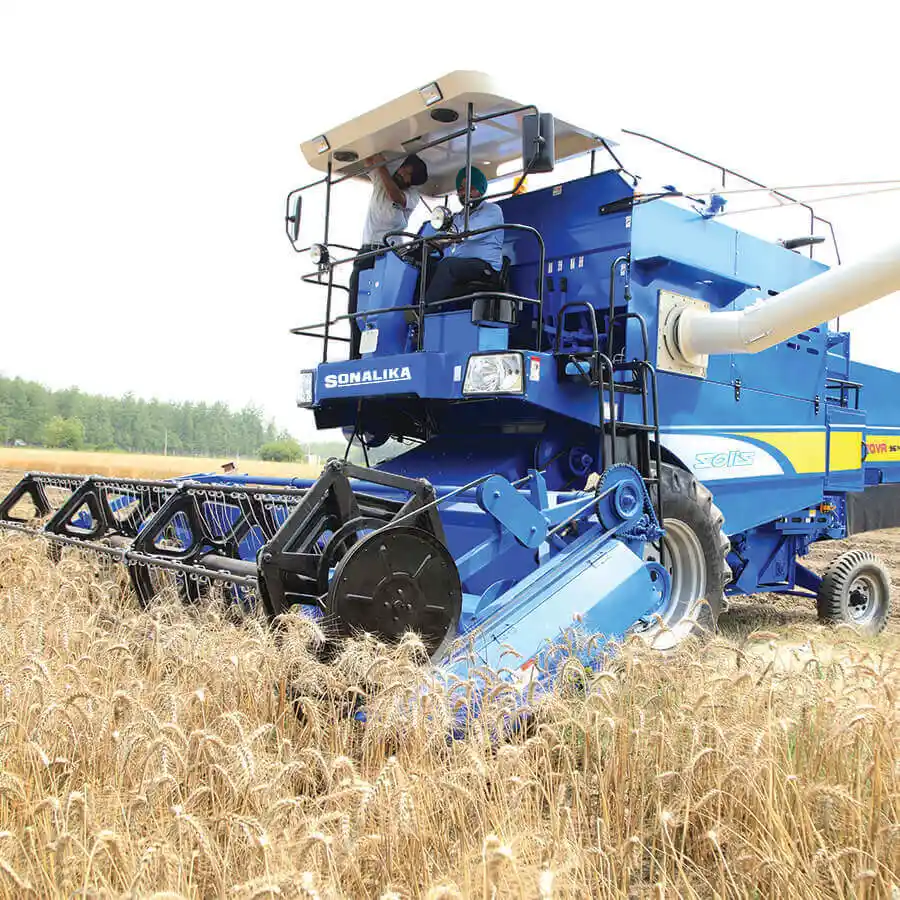

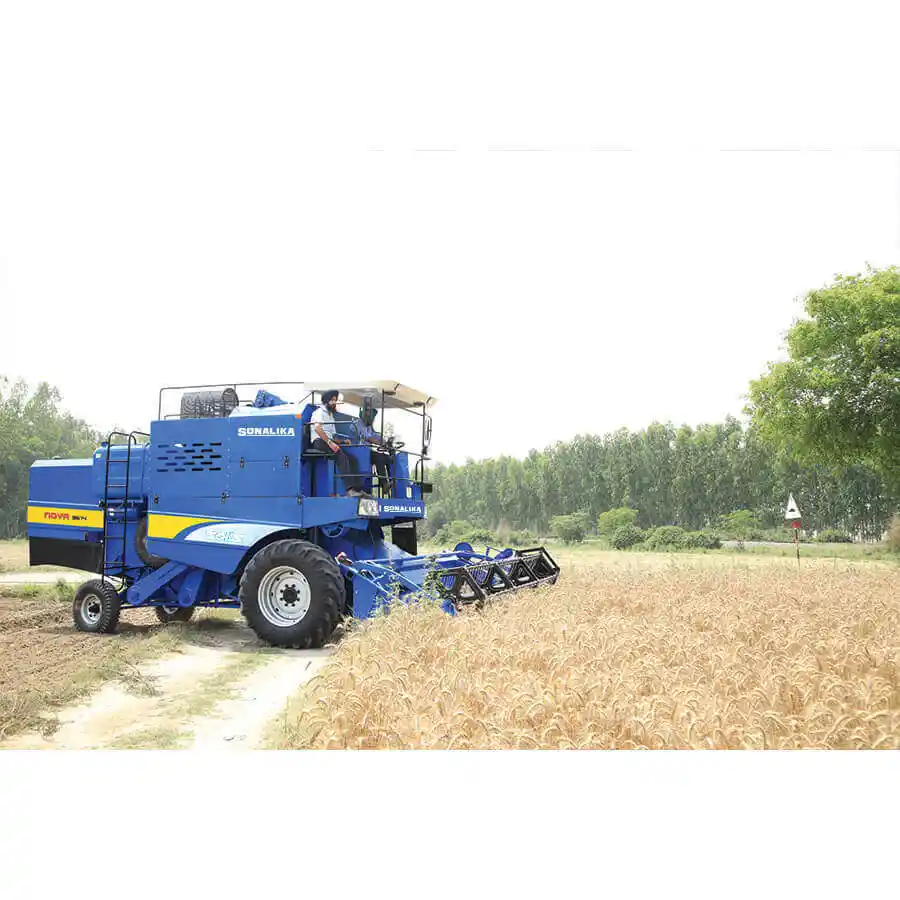

Self Propelled Combine Harvester
Self Propelled Combine Harvester
Self Propelled Combine Harvester comes with heavy-duty engine which provides high power in fields. This machine gives high productivity and lows on maintenance.
Heavy Duty Engine
3 Forward an 1 reverse gear which makes combine more efficienct
Better cutter bar width for high performance in less time
Heavy duty gear box
Heavy duty disc break
Crystal combination headlights
Technical Specification
|
THRESHING MECHANISM
|
|||
| Thresher Drum | Wheat (Rasp Bar) | Paddy (Peg Tooth) |
Maize (Peg Tooth)
|
| Width (mm) | 1250 | 1250 | 1250 |
|
Diameter of Thresher Drum (mm)
|
605 | 605 | 605 |
| Speed rpm | 540-1200 | ||
|
Speed Adjustment
|
By means of Mechanical Variator | ||
|
STRAW WALKER
|
|||
|
No. of Straw Walker
|
5 | ||
| No. of Steps | 5 | ||
| Length (mm) | 3770 | ||
| Width (mm) | 235 | ||
|
CLEANING SIEVES
|
|||
| Area | 2.42 | ||
|
Upper Sieve Area (m2)
|
1.77 | ||
| CAPACITY | |||
| Grain Tank (m3) | 2.5 | ||
| Fuel Tank (ltr.) | 365 | ||
| TYRE | |||
| No. of Batteries | 2 | ||
|
Capacity of Rating of each
|
12V, 100 | ||
| TYRE | Size | Ply Rating | |
| Front | 18.4-30 | 12pr/14pr | |
| Rear | 9.00-16 | 16pr | |
|
MAIN DIMENSIONS
|
|||
| In working | 8370 | ||
| Width (mm) | 4665 | ||
| Height (mm) | 3850 | ||
|
Ground Clearance (mm)
|
370 | ||
| In Transport | |||
| Length (mm) | 12450 | ||
| Width (mm) | 3035 | ||
| Height (mm) | 3850 | ||
|
Total Weight (Kg.)
|
9120 with trailer (Approx.) | ||
| MODEL | SL – CH101 Samrat | ||
| ENGINE | |||
| Power (RPM) | 101 HP Ashok Leyland | ||
| No. of Cylinder | 6 | ||
| Air Cleaner | Dry | ||
| Cooling System | Water cooled | ||
| CLUTCH | |||
| Type of clutch | Single, Heavy Duty Dry Clutch | ||
| Dia (mm) | 330 | ||
|
TRANSMISSION
|
|||
| No. of Gears | 4 Forward + 1 Reverse | ||
|
Gear Speed (km/hr)
|
|||
| Forward | L | H | |
| 1st Gear | 1.8 | 2.9 | |
| 2nd Gear | 4 | 6.4 | |
| 3rd Gea | 7.25 | 11.6 | |
| 4th Gear | 15.9 | 25.5 | |
| Reverse | 5.3 | 8.4 | |
|

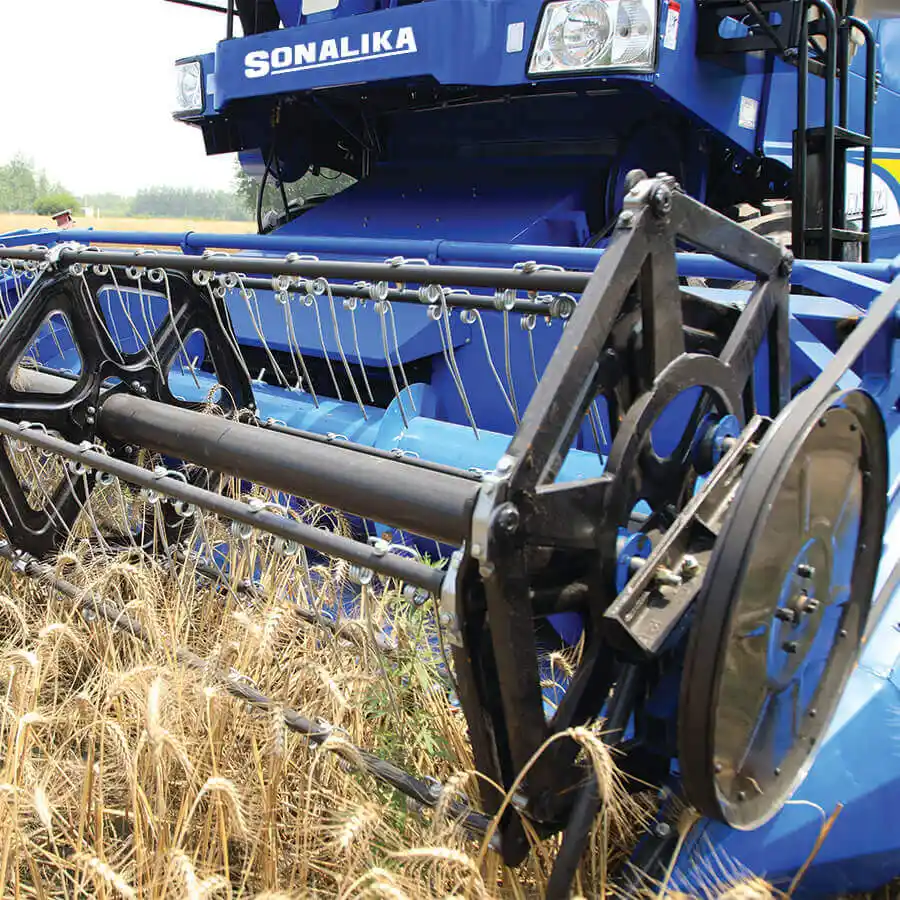

CUTTER BAR MECHANISM
|
|||
|
For Wheat, Paddy & Others
|
|||
| Width (mm | 4.3 | ||
|
Cutting Height (mm)
|
65-1275 | ||
| No. of Blades | 58 | ||
| No. of Guards | 29 | ||
| Stroke (mm) | 85 | ||
| Reel Speed | 20-55 | ||
| Reel Dia (mm) | 915 | ||
| Feeder Housing | Chain Type Feeder | ||

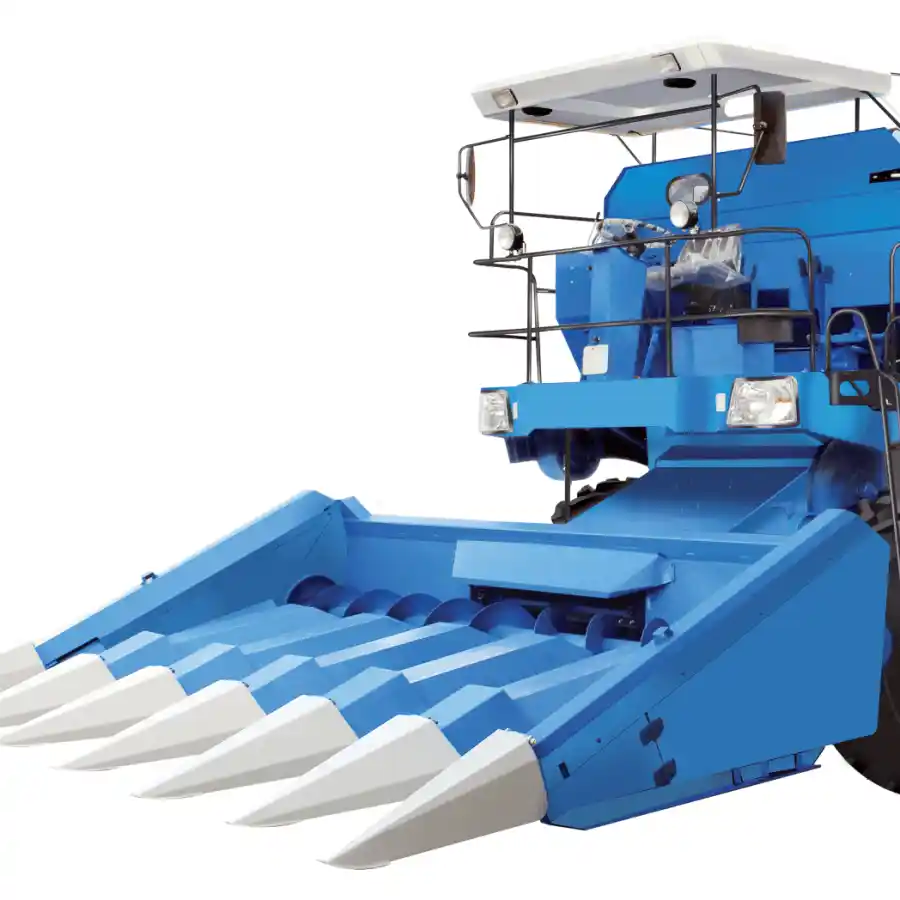

| MAIZE | |||
|
Cutter Bar Working Width (mm)
|
3.4m, 3.12m | ||
| No. of Rows | 5/6/2007 | ||
|
Spacing of Rows (mm)
|
457.2, 609.6, 762 (18″/24″/30″) | ||
