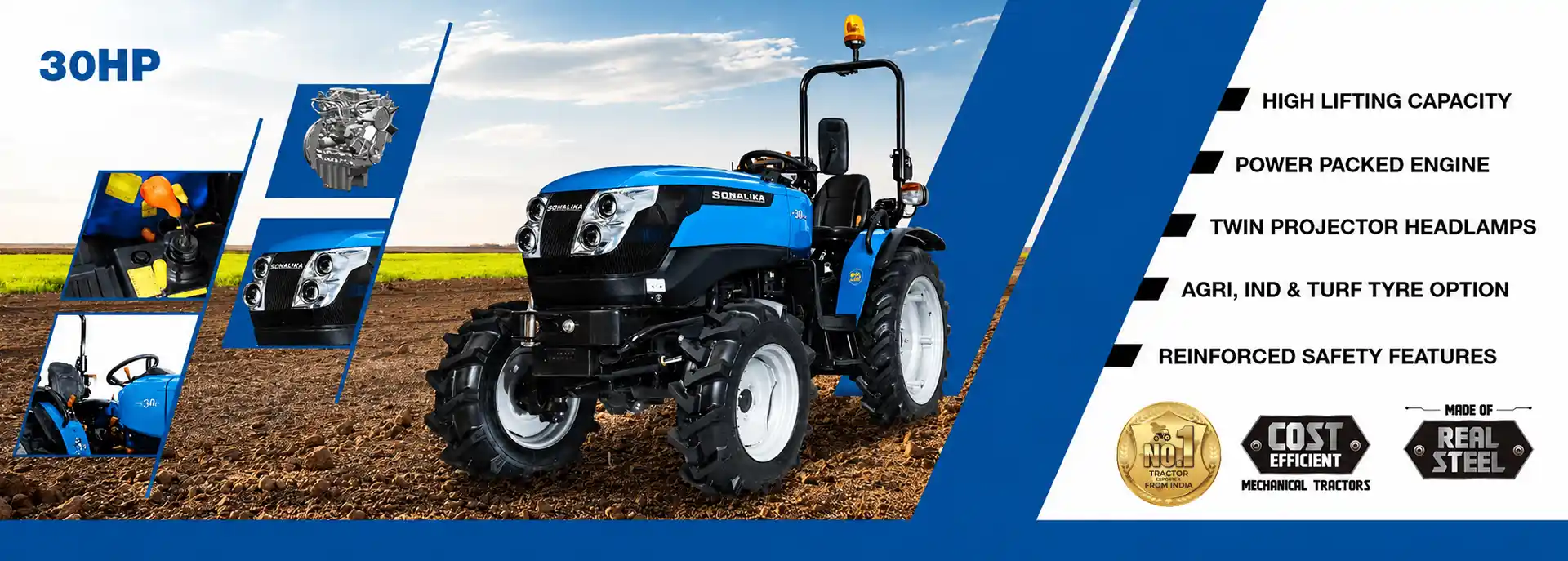

Features
HIGH LIFTING CAPACITY
POWER PACKED ENGINE
TWIN PROJECTOR HEADLAMPS
AGRI, IND & TURF TYRE OPTION
REINFORCED SAFETY FEATURES
Technical Specifications
Engine
| Engine Type | Mitsubishi Engine | ||
| HP Category | 30 | ||
| No. of Cylinders | 3 | ||
| Aspiration | Natural | ||
| Cubic Capacity (cc) | 1318 | ||
| Rated RPM | 3000 | ||
| Air cleaner | Dry with clogging Sensor | ||
| Max Torque (Nm) | 82 Nm(±5%) 2000 | ||
| Exhaust | Underhood Downdraft |
Transmission
| Drive | 4WD | ||
| Clutch | Clutch Single Clutch | ||
| Gearbox | 6F+2R | ||
| Transmission | Sliding Mesh |
Speed (Forward)
| Maximum Speed (Km/Hr) | 17.06 Kmph (Varies with Tires) | ||
| Minimum Speed (Km/Hr) | 1.82 Kmph (Varies with Tires) |
Brakes
| Brakes | Oil Immersed | ||
| Type of actuation | Mechanical | ||
| Parking Brake | Latch Type |
Differential Lock
| Differential lock | Foot Operated |
PTO
| PTO (rpm) | Rear 540 & 1000 RPM | ||
| PTO (actuation) | Mechanical |
Steering
| Steering | Power |
Electrical
| Battery | 12V, 65Ah | ||
| Alternator | 12V, 42Amp |
Hydraulics
| 3 point linkage | Cat 1-N | ||
| Stay Bars | Anchor Chain | ||
| Lifting Capacity | 600Kg | ||
| Auxiliary hydraulic circuit | 1DA/ 1SA (optional) | ||
| Lift rods | Standard | ||
| Flow(LPM) | 14.8 |
Safety Switch
| Clutch Safety Switch | Standard |
Capacity (Ltrs) (+/- 5%)
| Fuel tank | 26.5 L |
Turning Radius
| Turning Radius (Meter) | 2.7 with Brake | 3.0 without Brake |
Tyre
| Front | 7X14 | ||
| Rear | 8.30-24 |
Dimention & Weight
| Weight(kg) | 1030 | ||
| Wheel Base (mm) | 1570 | ||
| Total Length (mm) | 2760 | ||
| Total Width (mm) | 1165 | ||
| Height (mm) Up to ROPS | 2000 | ||
| Min Ground Clearance (mm) | 265 | ||
| Front Track (mm) | 950 | ||
| Rear Track (mm) | 870 |
Others
| Trailer Hitch – Option 1 | Standard | ||
| Option 2 | E-Marked Swinging bar | ||
| Front Tow Hook | Standard, Detachable |
Optional Features
| TYRE COMBINATIONS | |||
| Agricultural | Radial Agricultural | Turf & Ind. | Ind. Galaxy Pro |
| Front 6×12 Rear 8.3×20 |
Front 6.5/80-12 Rear 280/70 R18 |
Front 23×8.5-12 Rear 33×15.5-16.5 |
Front 220/55 R12 Rear 280/70 R16 |
