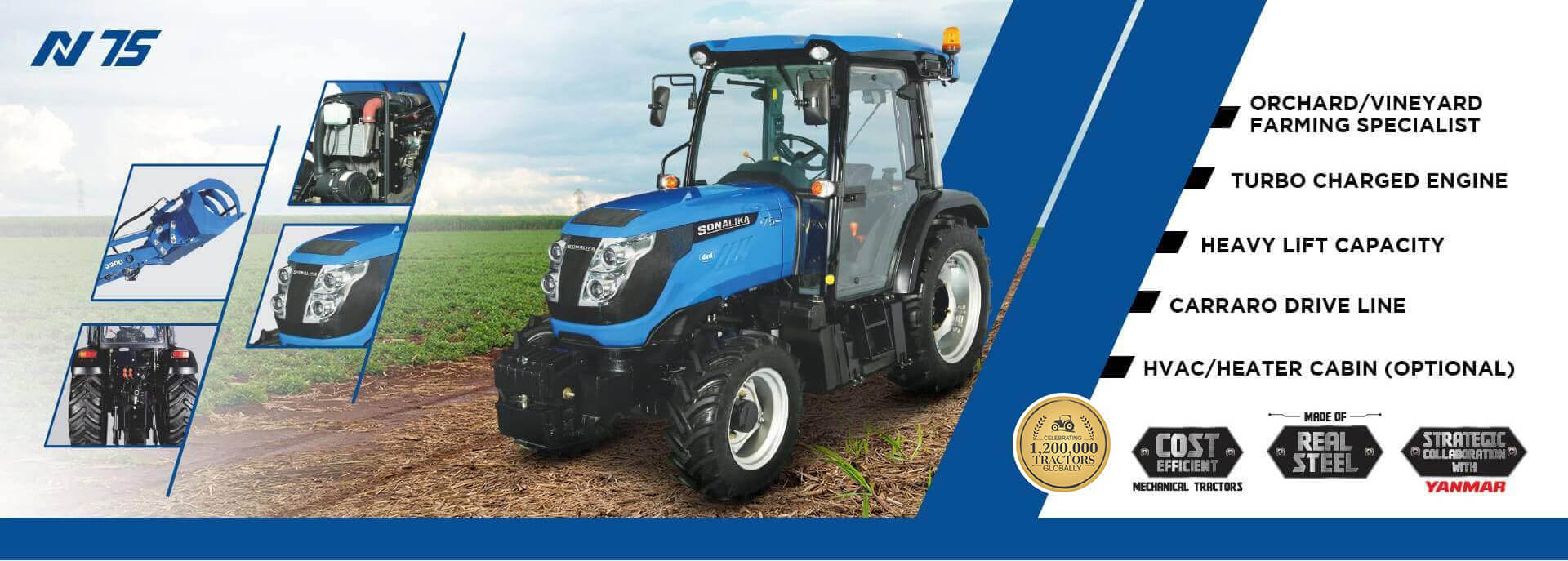

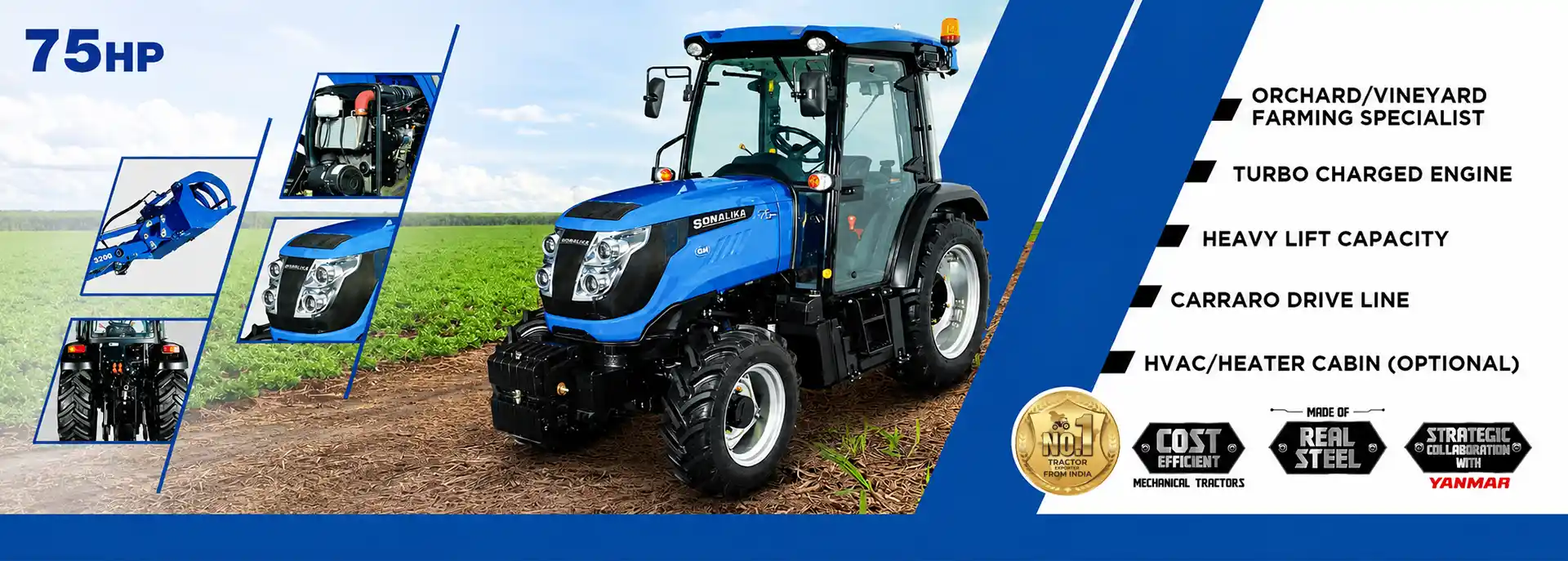

Features
Engine
Turbo Charged Engine
Specialist
Orchard / Vineyard Farming Specialist
Lifting Capacity
Heavy Duty Lifting Capacity
Renound gear box for better durability and comfort
Carraro Drive Line
For comfortable operations under tough weather conditions
HVAC / Heater Cabin (Optional)
Technical Specifications
Engine
Engine Type | 4100 FLT Inline, Turbo Charged |
---|---|
HP Category | 75 |
No. of Cylinders | 4 |
Aspiration | Turbo Charged |
Cubic Capacity (cc) | 3707 |
Rated RPM | 2200 |
Air cleaner | Dry Type with Clogging Sensor |
Cold Start | Standard |
Max Torque (nm) | 278 @ 1200 |
Exhaust |
Underhood Downdraft Towards the Floor |
Transmission
Drive | 4WD |
---|---|
Clutch | Double Clutch |
Gearbox | 12F+12R |
Front Axle | 4WD |
Transmission | Synchronmesh |
Speed (Forward)
Maximum Speed (Km/Hr) | 31.7 @ 2200 |
---|---|
Minimum Speed (Km/Hr) | 0.5 @ 2200 |
Brakes
Brakes | Oil Immersed Brakes |
---|---|
Type of actuation | Mechanical |
Parking Brake | Independent |
Differential Lock
Differential Lock | Standard, Foot Operated |
---|
PTO
PTO (RPM) | 540/540E |
---|---|
PTO (Actuation) | Mechanical |
Steering
Steering | Power |
---|
Electrical
Battery | 12V, 85Ah |
---|---|
Alternator | 12V, 90Amp |
Seven Pin Trailer Socket | Standard |
Hydraulics
3 Point Linkage | CAT-II |
---|---|
Stay Bars | Standard |
Hydraulic Lifting Capacity | 2500 Kg |
Auxiliary Hydraulic Circuit | 2DA/2SA |
Lift Rods | Standard |
Safety Switch
Neutral Safety Switch | Standard |
---|---|
Clutch Safety Switch | Standard |
Neutral Safety Switch | Standard |
Capacity (Ltrs) (+/- 5%)
Fuel Tank (Lit) | 71 |
---|
Turning Radius
Without Brakes (m) | 3.6 |
---|
Tyre
Front | 8-18 |
---|---|
Rear | 14.9-24 |
Dimention & Weight (+/- 5%)
Overall Length (mm) | 4240 |
---|---|
Overall Width (mm) | 1475 |
Overall Height upto ROPS (mm) | 2700 |
Wheel Base (mm) | 2306 |
Min. Ground Clearance (mm) | 265 |
Front Wheel Track Agri (mm) | 1150 |
Rear Wheel Track Agri (mm) | 1082 |
Flange to Flange Distance Front/Rear | 1155mm/892mm |
Others
Fuel Indicator Gauge | Standard |
---|---|
Front Tow Hook | Standard, Inbuilt in Front Weight |
Front & Rear Weights with Std. Ballast |
Front-72 Kg Base wt 6X31 Kg Front Removal Weight (Rear: 2X30 Kg) |
Trailer Hitch | Swinging Drawbar |
ROPS | Mid Mounted Foldable |
Optional Features
Tyres | Front – 210/95/R18, Rear – 360/70/R28 Front – 280/70R18, Rear – 360/70R28 Front – 260/70R16, Rear – 360/70R24 |
---|---|
Cabin | HVAC / Heater |
Front Mudguard | Standard |
Trailer Brake | HTB |
Front Tyre 2WD | 6.5×16 |
